androids Industrial Computer
Hongdian embedded box series integrates IoT and AI technology and provides hardware support such as facial payment and machine vision applications. It has edge computing and voice interaction capabilities and carries AI artificial intelligence motherboard supporting big data operation, face recognition algorithm, etc. It can be used in vending machines, intelligent express cabinets, human-computer interaction large game terminal, unmanned settlement platform, interactive advertising machine and other kinds of self-service terminals.
contact us
Product Value
Human-computer interaction
Touch screen interaction, high-definition display and voice output

01

AI intelligent algorithm
AI face recognition, AI cargo recognition

02

androids OS
An easy-to-develop environment, excellent program compatibility, and rapid development

03

Intelligent control
Control digital door locks, cameras, payment devices, motors, etc

04

Product Advantages
High-performance ARM motherboard architecture
Lightweight AI algorithm
Powerful video codec capability
Industrial-grade screen
Product Comparison Table
Product

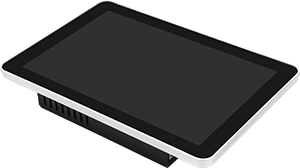

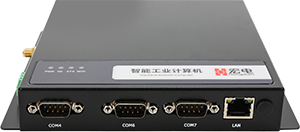

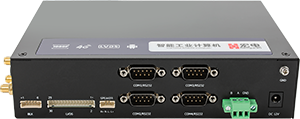

androids Industrial Computer H9380P H9380F Q6101 Q6133
Hardware
CPU Dual core ARM Cortex-A72 + Quad core ARM Cortex-A53 @1.8GHz Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz
NPU N/A 0.8TOPS 0.8TOPS 0.8TOPS
Memory 2GB 2GB 2GB 2GB
Built-in storage 16GB 8GB 8GB 8GB

Cellular Interface
Modem 1 x LTE  CAT4 1 x LTE CAT4 1 x LTE CAT4 1 x LTE CAT4
Number of Antennas 1 1 1 1
SIM 1 x Mini SIM (2FF) 1 x Mini SIM (2FF) 1 x Mini SIM (2FF) 1 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n 802.11b/g/n 802.11b/g/n 802.11b/g/n
Frequency Bands 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz
Speed 150Mbps 150Mbps 150Mbps 150Mbps
Antennas 1 (WiFi and Bluetooth) 1 (WiFi and Bluetooth) 1 (WiFi and Bluetooth) 1 (WiFi and Bluetooth)
Bluetooth BT4.0 BT4.0 BT4.0 BT4.0
GNSS Interface
Number of Antennas  N/A 1 N/A N/A
Peripheral Interface
Serial 3 x RS-232 (1 x RS-232 port can be configured as a RS-485 port), DB9 male connector
1 x RS-485 serial port,  3-pin 3.5 mm female socket 		4 x RS-232 (2 x RS-232 port can be configured as a RS-485 port), DB9 male connector
 1 x RS-485 serial port,  3-pin 3.5 mm female socket 		2 x RS-232 + 2 x RS-485 serial port, 10-pin 2 mm female socket 2 x RS-232, DB9 male connector
Ethernet 1x 10/100/1000 Mbps, Gigabit Ethernet 1 x 10/100/1000 Mbps, Gigabit Ethernet 1x 10/100 Mbps, Ethernet 1x 10/100 Mbps, Ethernet
USB 4 x USB 2.0, 2 x USB 3.0, 1 x OTG 6 x USB 2.0,  1 x OTG 4 x USB 2.0,  1 x OTG 4 x USB 2.0 x 4,  1 x OTG x1
Display 1 x HDMI 2.0 1 x  HDMI 2.0, 1 x LVDS 1 x HDMI 2.0 1 x HDMI 2.0
Display Performance
Liquid Crystal N/A N/A LED Display Screen LED Display Screen
Screen Size 10.1 inch 13.3 inch
Resolution 1280 × 800 1920 x 1080
Brightness 250cd/m2 250cd/m2
Contact Performance
Transmittance N/A N/A ≥85% ≥85%
Glass Material Tempering glass Tempering glass
Max Touch Points Simultaneous 10-Point Touch  Simultaneous 10-Point Touch
Software
Operating System androids 7.1.2/Linux  androids 11/Linux  androids 11/Linux  androids 11/Linux
Video code  H.265/H.264/VP9 4K@60fpsHD video decoding  H.265/H.264/VP9 4K@60fpsHD video decoding
H.265/H.264/VP9 1080P@100fpsHD videoencoding  		H.265/H.264/VP9 4K@60fpsHD video decoding
H.265/H.264/VP9 1080P@100fpsHD videoencoding  		H.265/H.264/VP9 4K@60fpsHD video decoding
H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing        BMP, JPG, PNG, GIF   BMP, JPG, PNG, GIF   BMP, JPG, PNG, GIF   BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector 4 pin aviation connector DC socket DC socket DC socket
Voltage Input 12V DC 12V DC 12V DC 12V DC
Power Consumption Less than 10W (only system)  Less than 10W (only system)  Less than 15W (only system)  Less than 18W (only system)
Others
Reset Button Yes Yes Yes Yes
LED Indicators 4 x indicators for PWR, SYS, 4G, WIFI 3 x indicators for PWR, SYS, 4G 3 x indicators for PWR, SYS, 4G 3 x indicators for PWR, SYS, 4G
Hardware Watchdog Yes Yes Yes Yes
Physical Characteristics
Ingress Protection  IP30 IP30 IP30 IP30
Housing Metal Metal Metal Metal
Dimension 170x150x27(mm) 210×130×44.6(mm) 256×170×36.3(mm) 325.2×196.77×39.4(mm)
Installations  Wall-mounting   Wall-mounting   Wall-mounting   Wall-mounting
Operating Temperature  -20 ~ +70 °C -20 ~ +70 °C -20 ~ +70 °C -20 ~ +70 °C
Storage Temperature -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C
Relative Humidity 5 ~ 95% 5 ~ 95% 5 ~ 95% 5 ~ 95%
EMC
ESD EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3
RS EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3
EFT EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3
CS EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3
