Edge-computing Gateway

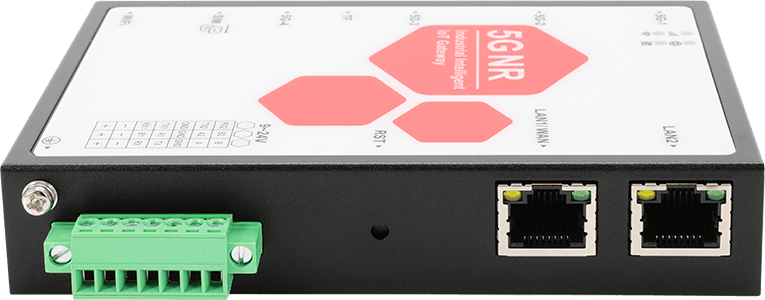

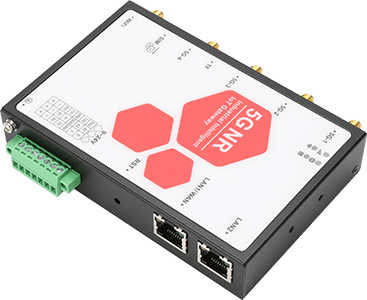

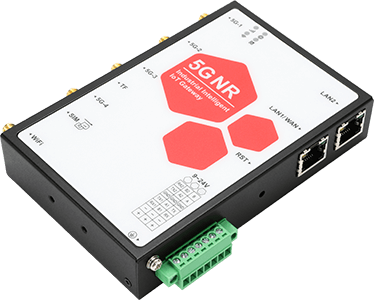

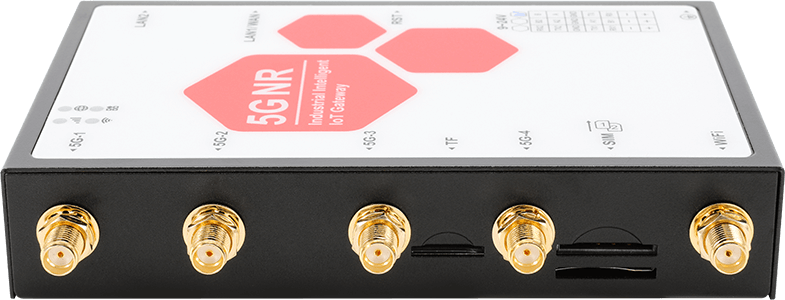

Z2 5G Industrial Gateway
  • 5G broadband with extreme low latency
  • Data acquisition and edge processing
  • Dividing VLAN, network isolation
  • With wide temperature and resistance to strong electromagnetic interference
Product Introduction
Z2 5G Industrial Gateway is a new generation of 5G gateway with edge computing capability. Its built-in 4-core high-performance processor supports floating point computing and built-in embedded memory, external TF card interface support local storage and data processing. The open software architecture design provides fast and flexible customization, rich and diverse interfaces, local real-time data analysis and intelligent processing with strong temperature, electromagnetic resistant and is able to adapt to different industry scenarioses.
Data Collection
  • 2 x 100/1000 Mbps
  • RS-232 + RS-485
  • TF storage
5G NR Ready
  • 13 Bands support of 5G
  • SA/NSA compatible
  • Maximun uplink optimize
  • Designed for URLLC & EMBB business
Compact Design
  • Compact size and full 5G feature
  • 2 to 5 antennas fits various case
  • Qualcomm solution
  • IPQ40X9 series chipsets
  • Qualcomm X55 modem
Compatibility
  • Compatible with 4G Cat 20
  • Support 5G SA & NSA
Maintainability
  • Support Web/CLI/SNMP/Wedora platform management
  • Cloud OTA and monitoring
Sercurity
  • PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/EzVPN Supports
  • IP/Domain/MAC Filter/Access Control List(ACL)
Hardware
CPU Quad-core ARM Cortex A7 @717MHz
RAM 512MB
FLASH 32MB+8GB eMMC
Cellular Interface
Modem 1 x 5G NR SA/NSA
Number of Antennas 4
Connector SMA-K
SIM 2 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n, AP or station modes
Frequency Bands 2.4 GHz
Speed 150Mbps
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1
Connector SMA-K
GNSS Interface
Number of Antennas 1 (only for GPS version，Share with WiFi)
Connector SMA-K with 50 ohms impedance
Dead Reckoning N/A
Peripheral Interface
Ethernet 1 × LAN 10/100/1000 Mbps + 1 × WAN/LAN 10/100/1000 Mbps, Gigabit Ethernet
Serial Type 1 x RS-232 + 1 x RS-485 serial port
Socket Form 1 x 7-pin 3.5 mm female socket
Signal Definition RX,TX,GND (RS-232)
A+,B-,GND (RS-485)
Baudrate RS-232 (300-115200bps)
RS-485 (300-115200bps)
AVOUT N/A
GPIO N/A
SD card TF card slot
USB
Video port N/A
Audio Port N/A
Software
Auto Fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network Protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
Serial Ports Function Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector 2 pin socket
Voltage Input +9V~+36V DC
Power Consumption Idle: 350mA@12V DC
Data transceiving:1.3A@12V DC
Others
Reset Button Yes
LED Indicators 4 x  indicators for WiFi, SIG, NET, SYS
Hardware Watchdog Yes
Physical Characteristics
Ingress Protection IP66
Housing & Weight Metal, 290g
Dimension 137×83×24(mm)
Installations Desktop, wall mounting and  DIN rail mounting
Operating Temperature -30 ~ +70℃
Storage Temperature -40 ~ +85 °C
Relative Humidity 5 ~ 95%
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
File Name
Hongdian Datasheet-Z2 5G Industrial Gateway-2024V1.0
Product Part No. Frequency Interface Region
5G modem WLAN RJ45 RS232 RS485

Z2

5G Industrial Gateway

Z2-N005-W-2R-CS NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD:
B34/B38/B39/B40/B41/B42/B43/B48
LTE DL 4×4 MIMO:
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
LAA:
B46(only support 2×2 MIMO)
WCDMA:
B1/B2/B3/B4/B5/B6/B8/B19 		1 1 2 1 1 Global

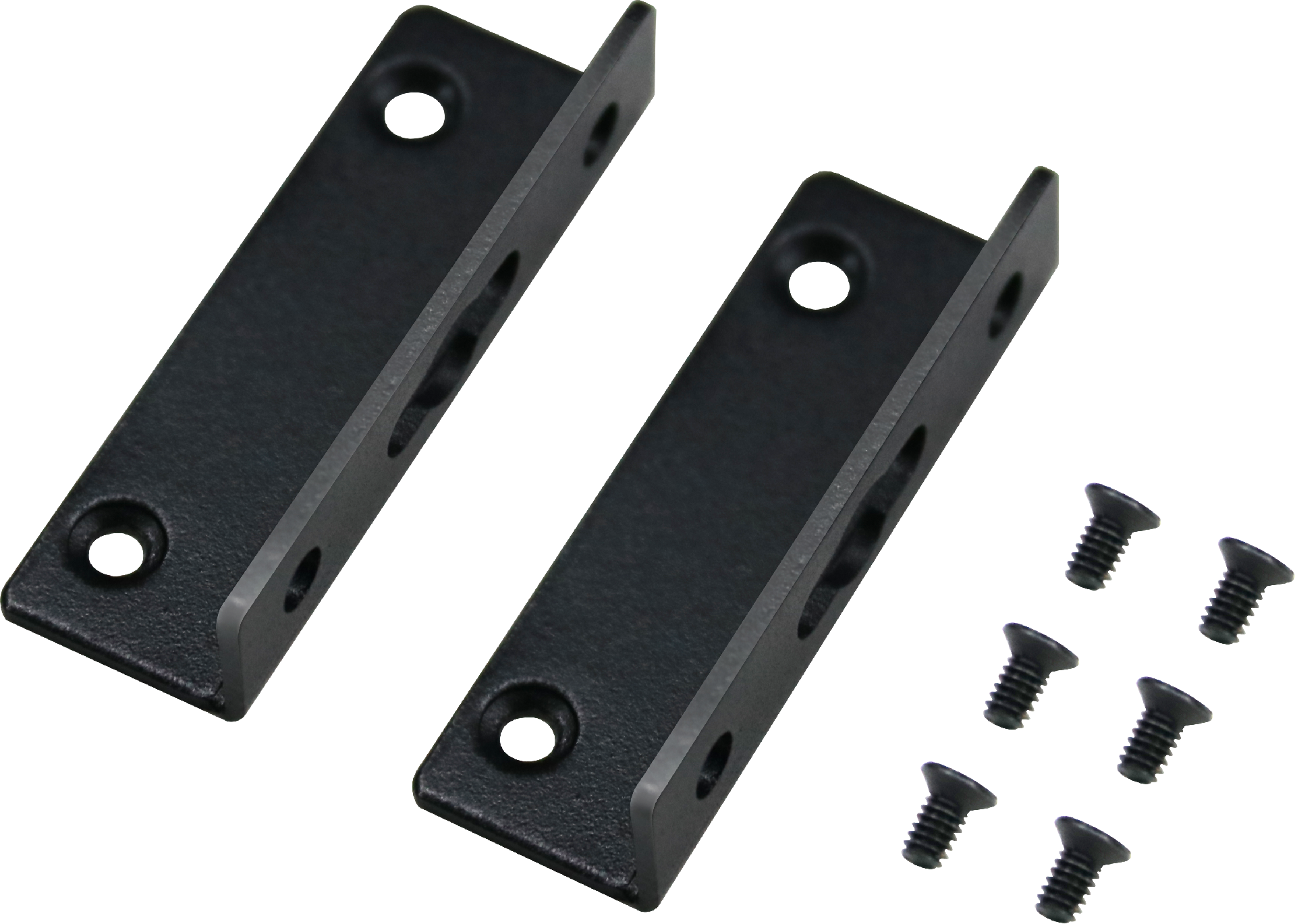

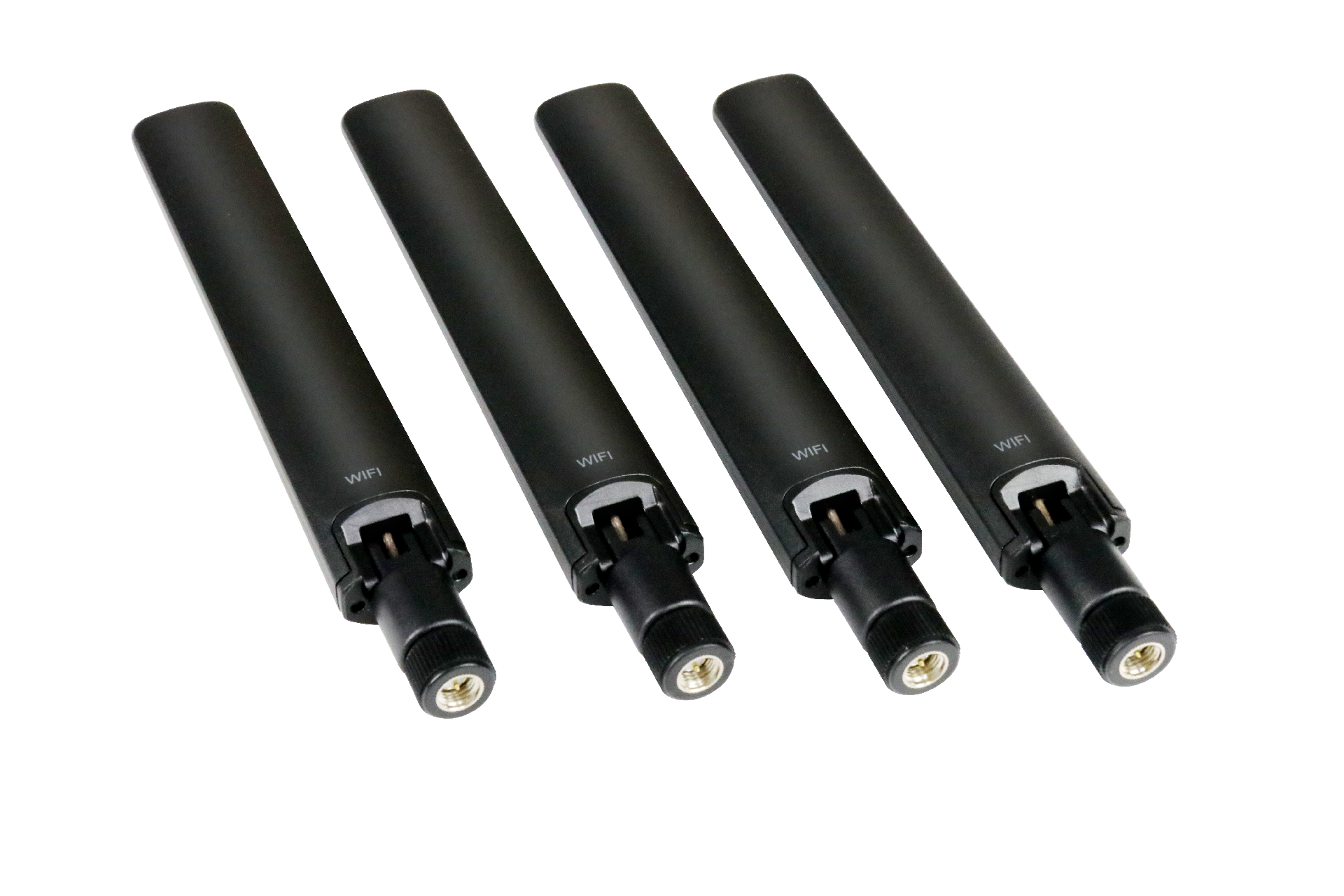

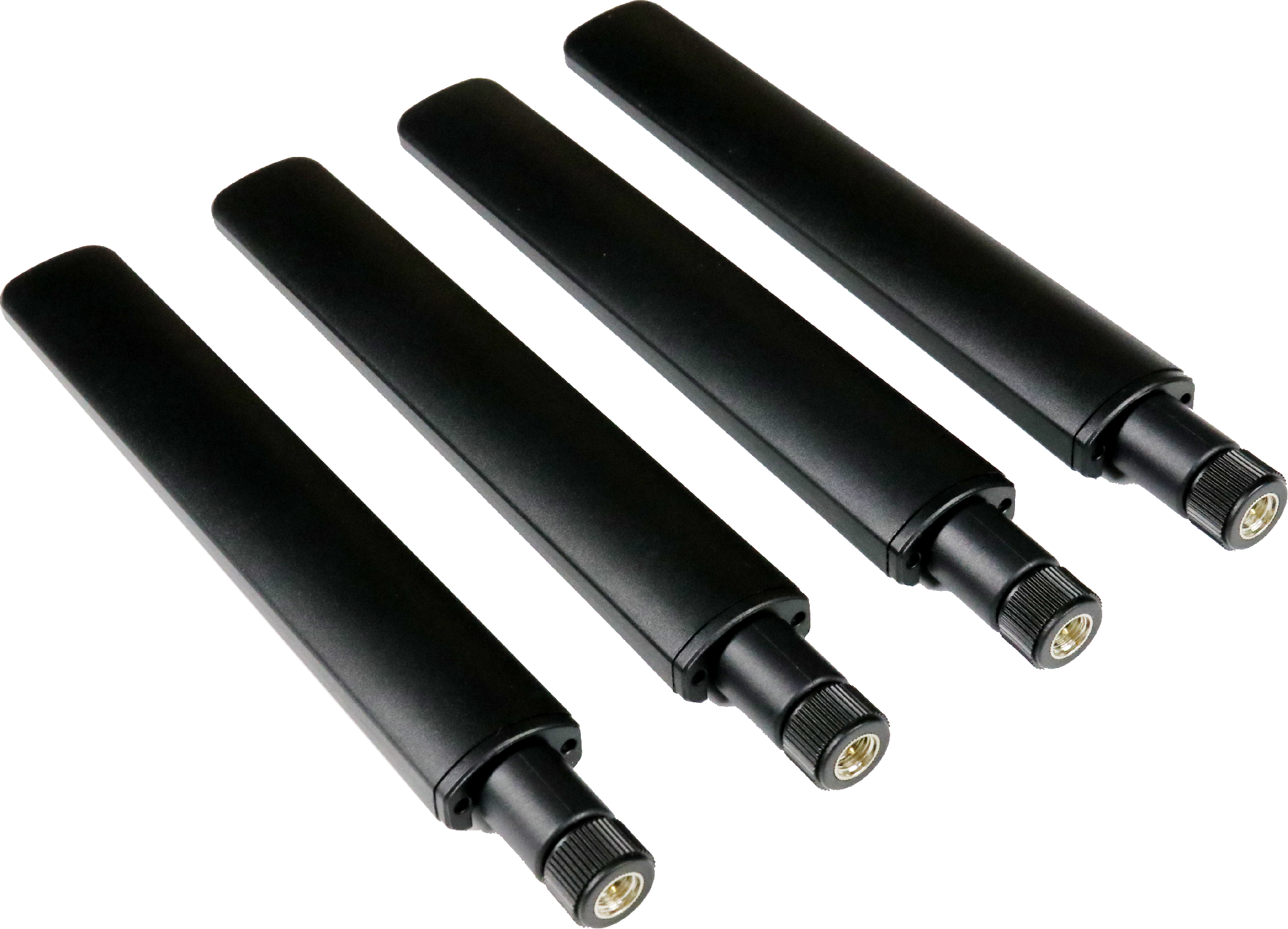

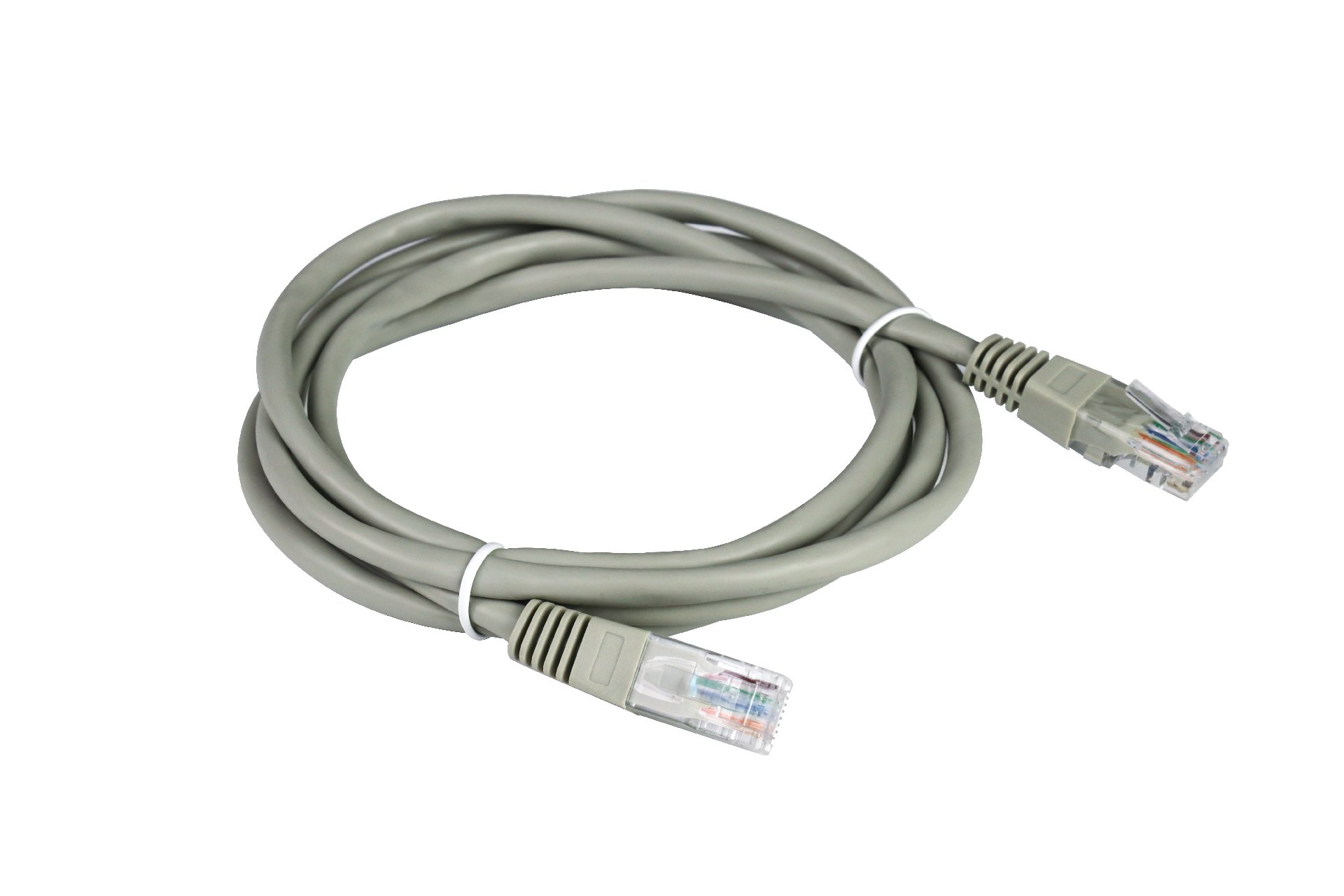

Compatible Accessories
