Industrial Embedded Series

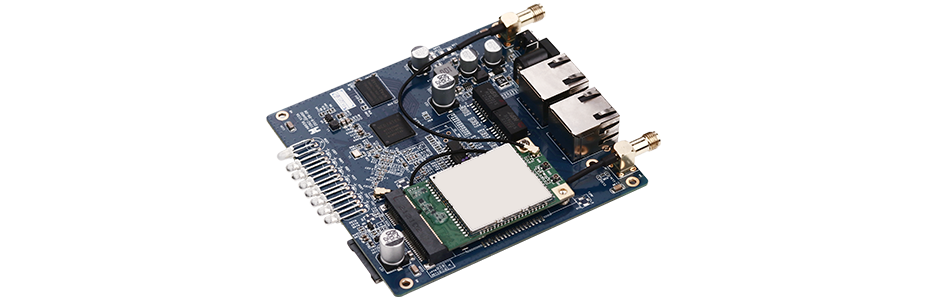

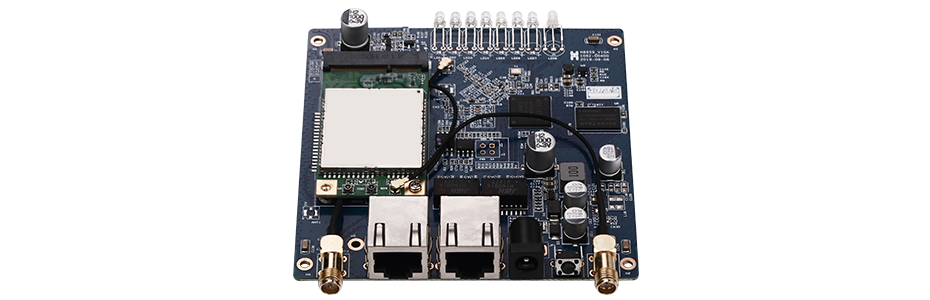

H8959-E Embedded Router
  • LTE Cat1/Cat4/WiFi/Ethernet link-backup for internet auto-failover
  • Advanced VPN protocols integrated, provide secure network
  • Support Hongdian Wedora RMS for cloud based management
  • Compact design
Product Introduction
H8959-E Embedded 4G Router is a cost-effective small footprint board. It offers Ethernet WAN, Wifi WAN and 4G WAN interfaces. Plus Links auto-failover, VPN data encryption, and multi-VPN tunnel backup machanism, giving you a secure and extremely reliable networking solution. It has two Ethernet ports, with simplified interfaces and better energy consumption control. With strong moisture-proof, anti-corrosion and insulation properties, it can be widely used in various industrial-grade embedded scenarioses.
Hardware
CPU MIPS 24Kc @580 MHz
NPU N/A
Memory 128MB
Built-in storage 16MB
Cellular Interface
Modem 1 x LTE CAT4
Module integration mini PCIe
Number of antennas 2
Connector SMA-K
SIM 1 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n, AP or station modes
Frequency Bands 2.4 GHz
Speed 150Mbps
Security WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1
Connector RP SMA-K
Bluetooth N/A
GNSS Interface
Number of Antennas Optional
Peripheral Interface
Serial N/A
Ethernet 2 x 10/100 Mbps, Ethernet
USB N/A
Display N/A
Software
Operating System Linux
Video code N/A
Image processing
Auto fail-over

Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)


Network protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, etc.
Network APN, VPDN, VLAN, QoS
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
Attack Prevention DDOS prevention, Anti port scanning
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
Serial ports function N/A
Power Supply and Consumption
Connector DC socket
Voltage Input +5V~+36V DC
Power Consumption

Idle: 100mA@12V DC

Data transceiving: 350mA@12V DC

Others
Reset Button Yes
LED Indicators 8 x indicators for Modem, Power, WLAN, Ether, Signal
Hardware Watchdog Yes
Physical Characteristics
Dimension 102.8×98.8×23.4(mm)
Installations wall mounting
Operating Temperature -30 ~ +75℃
Storage Temperature -40 ~ +85 °C
Relative Humidity 0~95%(no condensation)
