Industrial Embedded Series

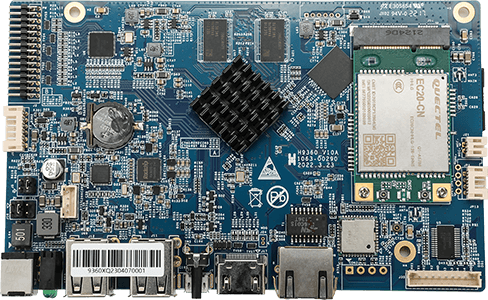

H9360-E Embedded Computer
  • Dual core ARM Cortex-A72+Dual core ARM Cortex-A53 @2.0GHz
  • 2GB DDR + 8G EMMC
  • Rich interfaces for multimedia applications
  • androids 11/Linux
Product Introduction
H9360-E Embedded Computer adopts high-performance processor and androids operating system to design high reliability and high stability intelligent industrial control equipment. It provides androids 11 and other operating environments, supports 4G full Netcom real-time communication, and the city service and commercial networking APPs can directly run in the industrial computer system to provide end-users with convenient interactive services. Its rich peripheral interfaces and super image processing capabilities can be widely used in urban services and new retail fields.
Hardware
CPU Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz
NPU 0.8TOPS
Memory 2GB
Built-in storage 8GB
Cellular Interface
Modem 1 x LTE CAT4
Module integration mini PCIe
Number of antennas 2
Connector SMA-K
SIM 1 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n, AP or station modes
Frequency Bands 2.4 GHz
Speed 150Mbps
Security WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1 (WiFi and Bluetooth)
Connector SMA-K
Bluetooth BT4.0
GNSS Interface
Number of Antennas Optional
Peripheral Interface
Serial 2 x RS-232 + 2 x RS-485 serial port, 10-pin 2 mm female socket
Ethernet 1x 10/100 Mbps, Ethernet
USB 5 × USB 2.0, 1 × OTG
Display 1 × HDMI 2.0, 1 × LVDS , 1 × MIPI
Software
Operating System androids 11/Linux
Video code H.265/H.264/VP9 4K@60fpsHD video decoding
H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing BMP, JPG, PNG, GIF
Auto fail-over Between: Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
Network protocols PPP, PPPoE, TCP, UDP, IPv4,  DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, etc.
Network APN, VPDN, QoS
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
Attack Prevention DDOS prevention, Anti port scanning
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
Serial ports function N/A
Power Supply and Consumption
Connector DC socket
Voltage Input 12V DC
Power Consumption Less than 10W (only system)
Others
Reset Button Yes
LED Indicators 3 x indicators for PWR, SYS, 4G
Hardware Watchdog Yes
Physical Characteristics
Dimension 150×92×23.4(mm)
Installations Wall-mounting
Operating Temperature -20 ~ +70 °C
Storage Temperature -40 ~ +85 °C
Relative Humidity 5 ~ 95%
File Name
Hongdian Datasheet-H9360-E Embedded Computer_2024V1.0
Product Model 4G modem Interface Region
WLAN RJ45 RS232 RS485 USB

H9360-E

Embedded Computer

H9360-EU LTE-FDD:B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41
UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8
GSM/GPRS/EDGE:900/1800MHz 		1 1 2 2 5x USB 2.0
1x OTG 		Europe, Asia, Africa
H9360-AFX LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5 		1 1 2 2 5x USB 2.0
1x OTG 		North America
H9360-AUX LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD:B40
WCDMA:B2/B3/B5/B8 		1 1 2 2 5x USB 2.0
1x OTG 		South America,
Australia, Africa
H9360-JP LTE-FDD(B1/3/8/18/19/26) 1 1 2 2 5x USB 2.0
1x OTG 		Japan

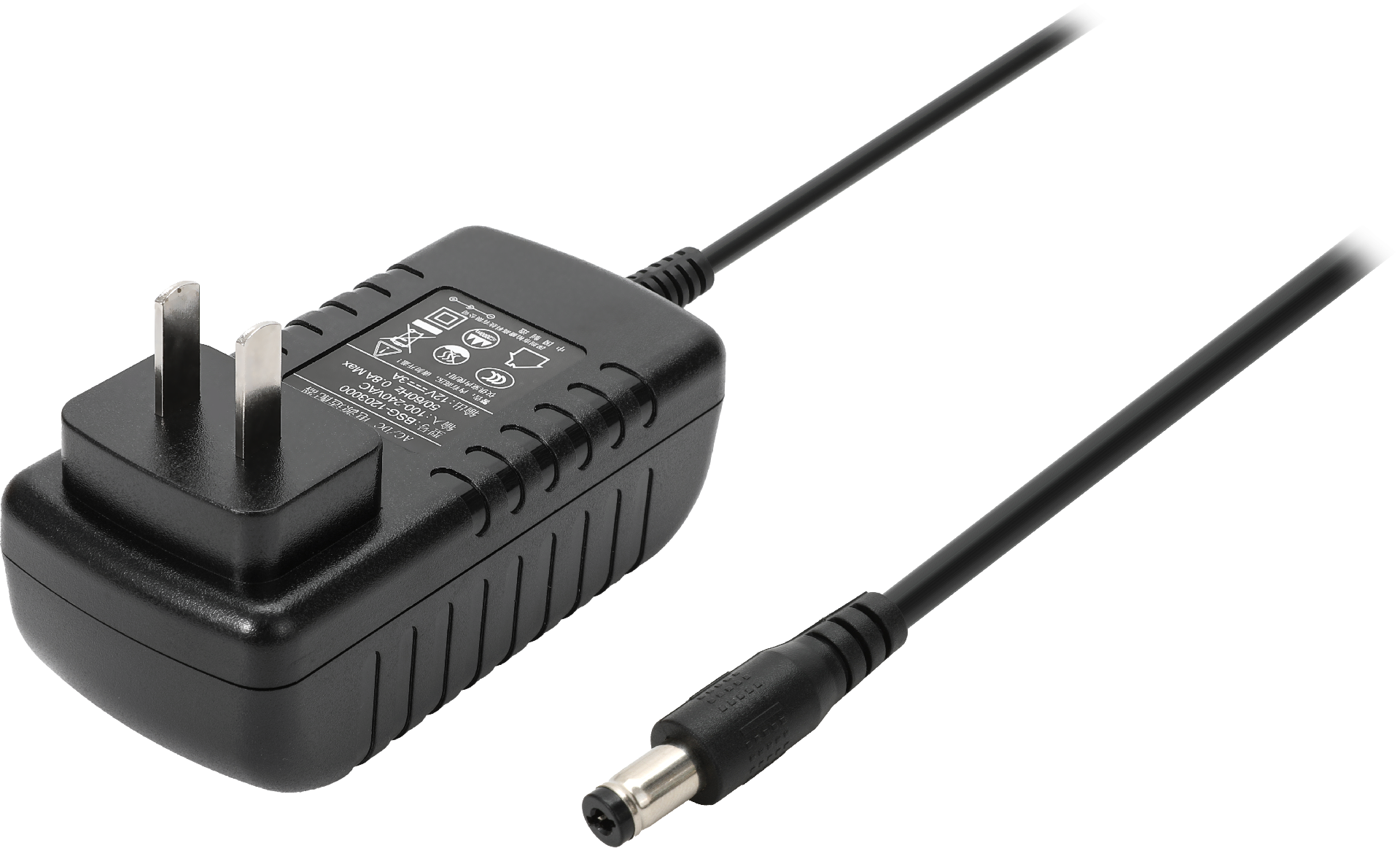

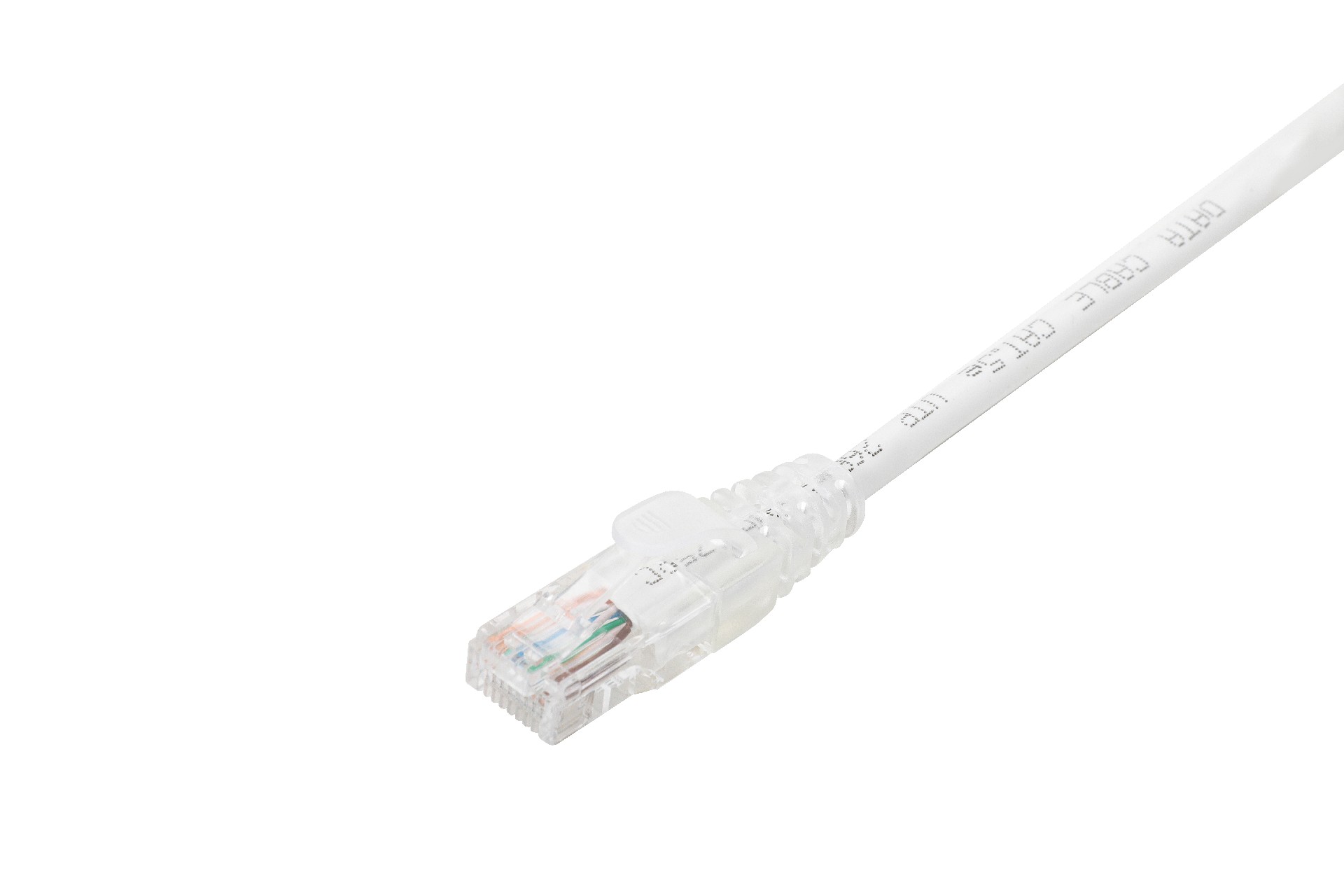

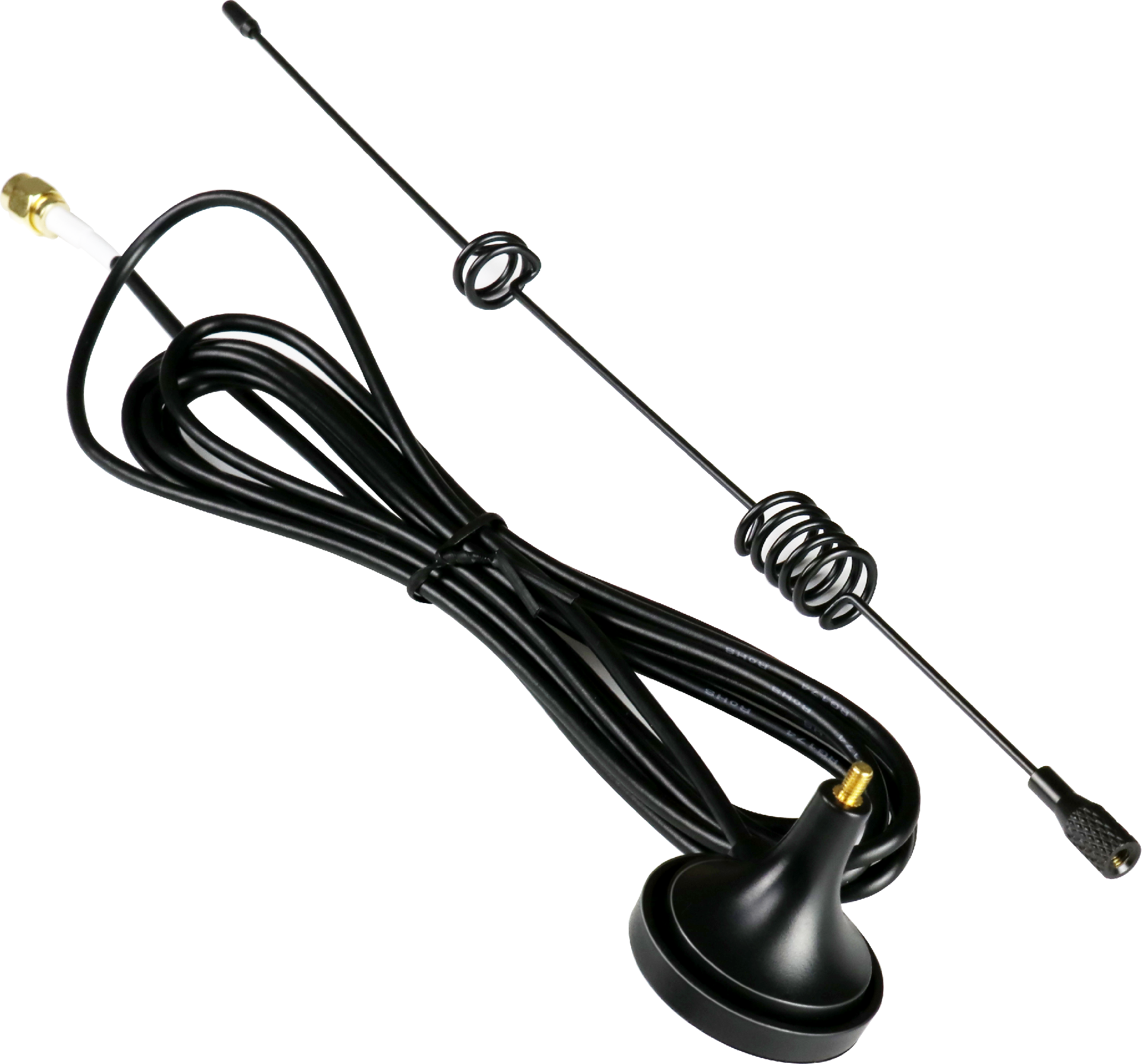

Compatible Accessories
