Cellular Router

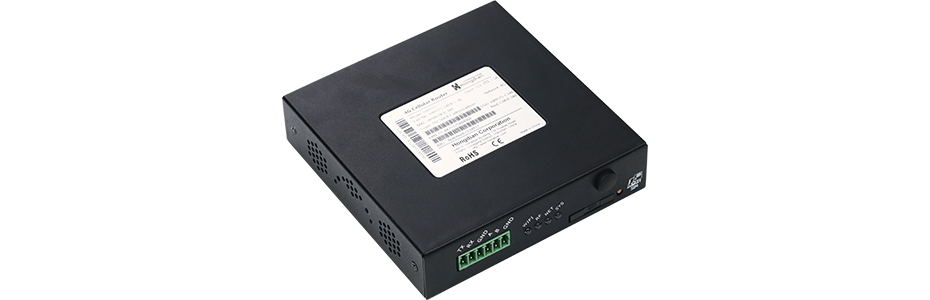

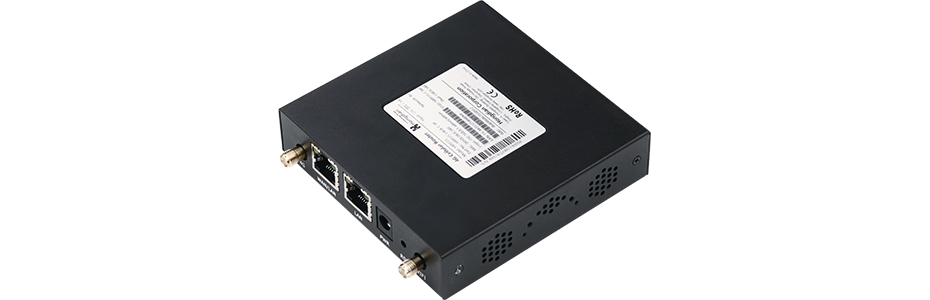

H8959 4G Cellular VPN Router
  • Support Qualcomm/ASR LTE Cat1/Cat4 module
  • Advanced VPN protocols integrated, provide secure network
  • Market approved quality
  • Support Hongdian Wedora RMS for cloud based management
Product Introduction
H8959 provides excellent wireless communication solution to customer by connecting their end devices towards their business success. It has been approved by global customers who are using its cellular based connection solution for all their assets/machines to get online, Wi-Fi station and Ethernet WAN can also be configured to help you build up different network topologies. Plus Links auto-failover, VPN data encryption, and multi-VPN tunnel backup machanism, giving customers a secure and extremely reliable networking solution.
Hardware
CPU MIPS 24Kc @580 MHz
RAM 128MB
FLASH 16MB
Cellular Interface
Modem 1 x LTE CAT1/CAT4
Number of antennas 2
Connector SMA-K
SIM 1 x Mini SIM (2FF)
Ethernet Interface
Number of ports 2 x 10/100 Mbps, Ethernet
Configuration 2 x LAN or 1 x LAN + 1 x WAN
PoE output N/A
Wireless interface
Standards 802.11b/g/n, AP or station mode
Frequency bands 2.4 GHz
Speed 150Mbps
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1
Connector RPSMA-K
GNSS interface
Number of antennas N/A
Connector
Dead Reckoning
Seiral interface
Type N/A
Socket form
Signal definition
Baudrate
Software
Auto fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Network APN, VPDN, VLAN, QoS
Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
Ipsec Encryption DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
Serial ports function N/A
Power Supply and Consumption
Power Connector DC socket
Voltage input +9V~+12V DC
Power consumption Idle: 100mA@12V DC
Data transceiving: 350mA@12V DC
Others
Reset button Yes
LED indicators 8 x indicators for Modem, Power, WLAN, Ether, Signal
Hardware watchdog Yes
Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 300g
Dimension 102.8×98.8×23.4(mm)
Installations Desktop, wall mounting
Operating temperature -30 ~ +75℃
Storage temperature -40 ~ +85 °C
Relative humidity 0~95%(no condensation)
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
Certifications
(*In progress) 		CE, FCC, Verzion,Sprint,PTCRB,IC,JATE+MIC,VCCI,RCM
