Cellular Router

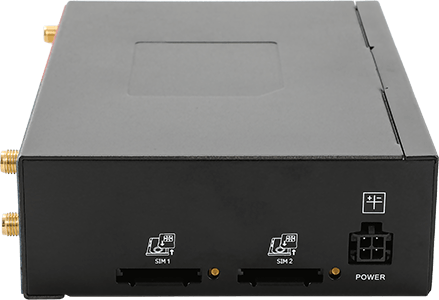

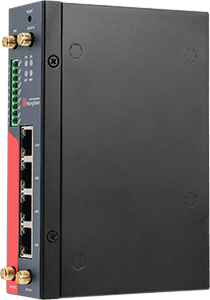

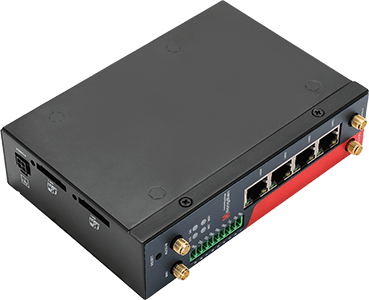

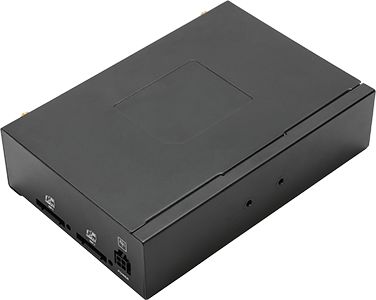

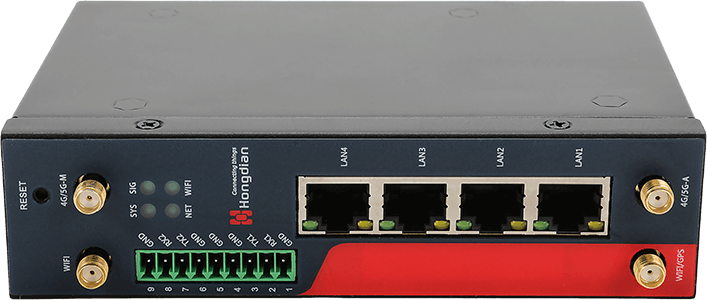

H7960 4G POE+ Router
  • Support LTE Cat4/Cat6/Cat12 or 5G NR
  • Support POE+ output on Ethernet and GPS DR
  • DIN rail installation
  • Support Hongdian Wedora RMS for cloud based management
Product Introduction
H7960 POE+ Router is dedicated for providing strong cellular network for IoT applications and has been approved by many customers in the vertical industries. It supports a set of cellular backup functions to keep the router working 7×24 hours, Data security is ensured by VPN private network access, with its high-speed and stable mobiles data transmission capacity to meet the needs of different applications, widely used in public transit, security serveillance, fleet management, smart gird, environmental protection and other applications.
  • Dual SIM backup
  • Support dual RS-232/RS-485 port
  • Support Modbus RTU to TCP
  • 4 LAN ports
  • 9-48VDC Wide range power supply
VPN
  • Support GRE/L2TP/PPTP/IPSec/OpenVPN
  • GRE over IPSec, IPSec over PPTP/L2TP
  • Network Flexubility
  • Support 4G+/4G/3G/2G network, cover most area of the world
  • Support 802.11b/g/n
Advance Feature
  • Static routing, RIPv2, OSPF, BGP and policy routing
  • Support OSPF, RIP, BGP (optional)
  • Support DNS proxy and Dynamic DNS (DDNS)
  • LCP/ICMP/flow/heartbeat check, ensure network usability
  • Support hardware and software Watch Dog
Management
  • Hongdian Wedora Cloud management
  • Support WEB, CLI, SSH, multiple parameter management
  • Support IPfix
  • Support local/remote firmware and patch upgrade
  • Support parameter backup and import
  • Local/Remote log for easy debug
  • Support SNMP network management, NTP, GPS (optional)
Hardware
CPU MIPS 24Kc @580 MHz
RAM 128MB
FLASH 16MB
Cellular Interface
Modem 1 x LTE CAT4
Number of antennas 2
Connector SMA-K
SIM 2 x Mini SIM (2FF)
Ethernet Interface
Number of ports 4 x 10/100 Mbps, Ethernet
Configuration 4 x LAN or 3 x LAN + 1 x WAN
PoE output 4 x POE+ 30W output
Wireless interface
Standards 802.11b/g/n, AP or station mode
Frequency bands 2.4 GHz
Speed 150Mbps
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1
Connector RPSMA-K
GNSS interface
Number of antennas 1 (only for GPS version)
Connector SMA-K with 50 ohms impedance
Dead Reckoning Optional
Seiral interface
Type 1 x RS-232 + 1 x RS-485 serial port
Socket form 1 x 9-pin 3.5 mm female socket
Signal definition RX,TX,GND (RS-232)
A+,B-,GND (RS-485)
Baudrate RS-232 (300-115200bps)
RS-485 (300-115200bps)
Software
Auto fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network protocols PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Network APN, VPDN, VLAN, QoS
Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
Ipsec Encryption DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
Serial ports function Transparent, Modbus RTU, etc
Power Supply and Consumption
Power Connector 4 pin socket
Voltage input +9V~+54V DC
Power consumption Idle: 100mA@12V DC
Data transceiving: 350mA@12V DC
Others
Reset button Yes
LED indicators 4 x  indicators for SYS, SIG, NEY, WIFI
Hardware watchdog Yes
Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 480g
Dimension 147×98×36.6(mm)
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -30 ~ +70℃
Storage temperature -40 ~ +85 °C
Relative humidity 0~95%(no condensation)
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
Certifications
(*In progress)
CE, FCC*
File Name
Hongdian Datasheet-H7960 4G POE+ Router-2024V1.0
Product Part No. Network Frequency Interface Certification Region
SIM WLAN RJ45 RS232 PSE GPS

H7960

4G POE+ Router

H7960-L4-ENEA-C-G LTE Cat 4 4G( LTE-FDD): B1/B3/B5/B7/B8/B20
4G (LTE-TDD): B38/B40/B41
3G(WCDMA): B1/B5/B8
2G: B3/B8
2 Wi-Fi 4 4 1 Yes Yes CE Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
H7960-L4-ENEA-2C 2 -
H7960-L4-ENNA-C-G LTE Cat 4 4G( LTE-FDD): B2/B4/B5/B12/B13/B14/B66/B71
3G WCDMA: B2/B4/B5
2 Wi-Fi 4 4 1 Yes Yes FCC* North America
H7960-L4-ENNA-2C 2 -
H7960-L4-ENSA-C-G LTE Cat 4 4G (FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28
4G (LTE-TDD): B40
3G: B2/B3/B5/B8
2 Wi-Fi 4 4 1 Yes Yes RCM*, Anatel* Oceania, South America
H7960-L4-ENSA-2C 2 -
For more detailed information about the frequency or any specific requirement, please contact your sales representitive.

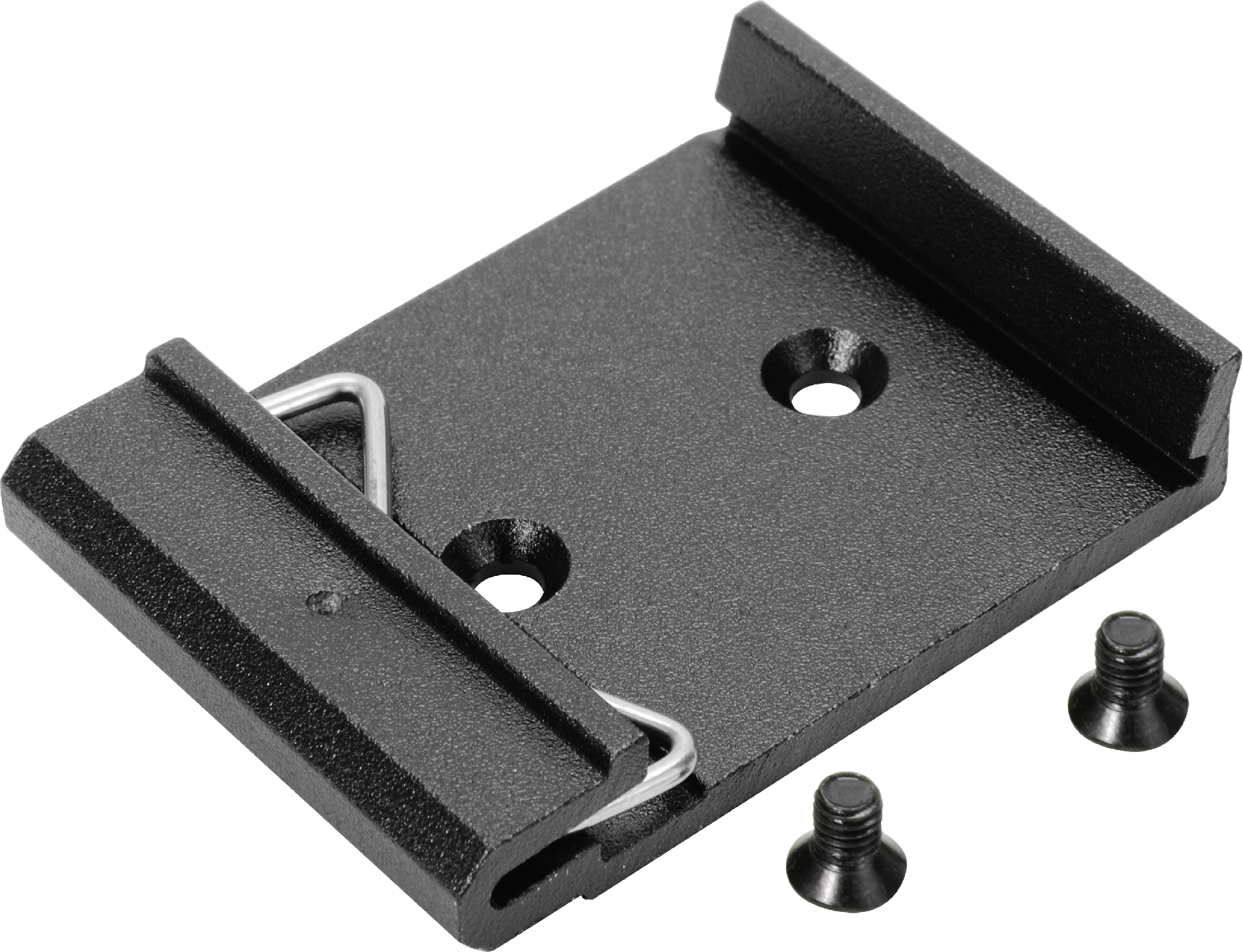

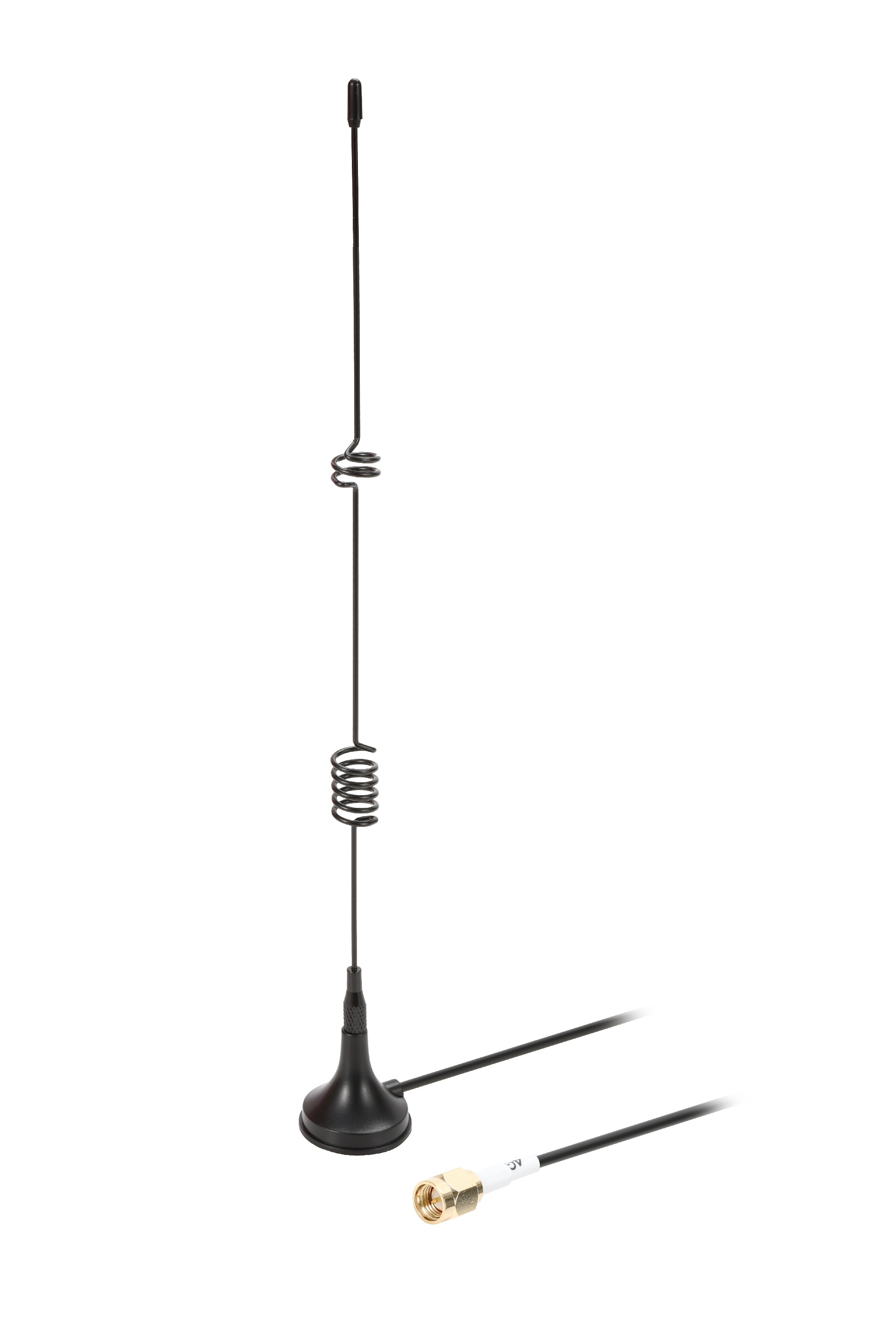

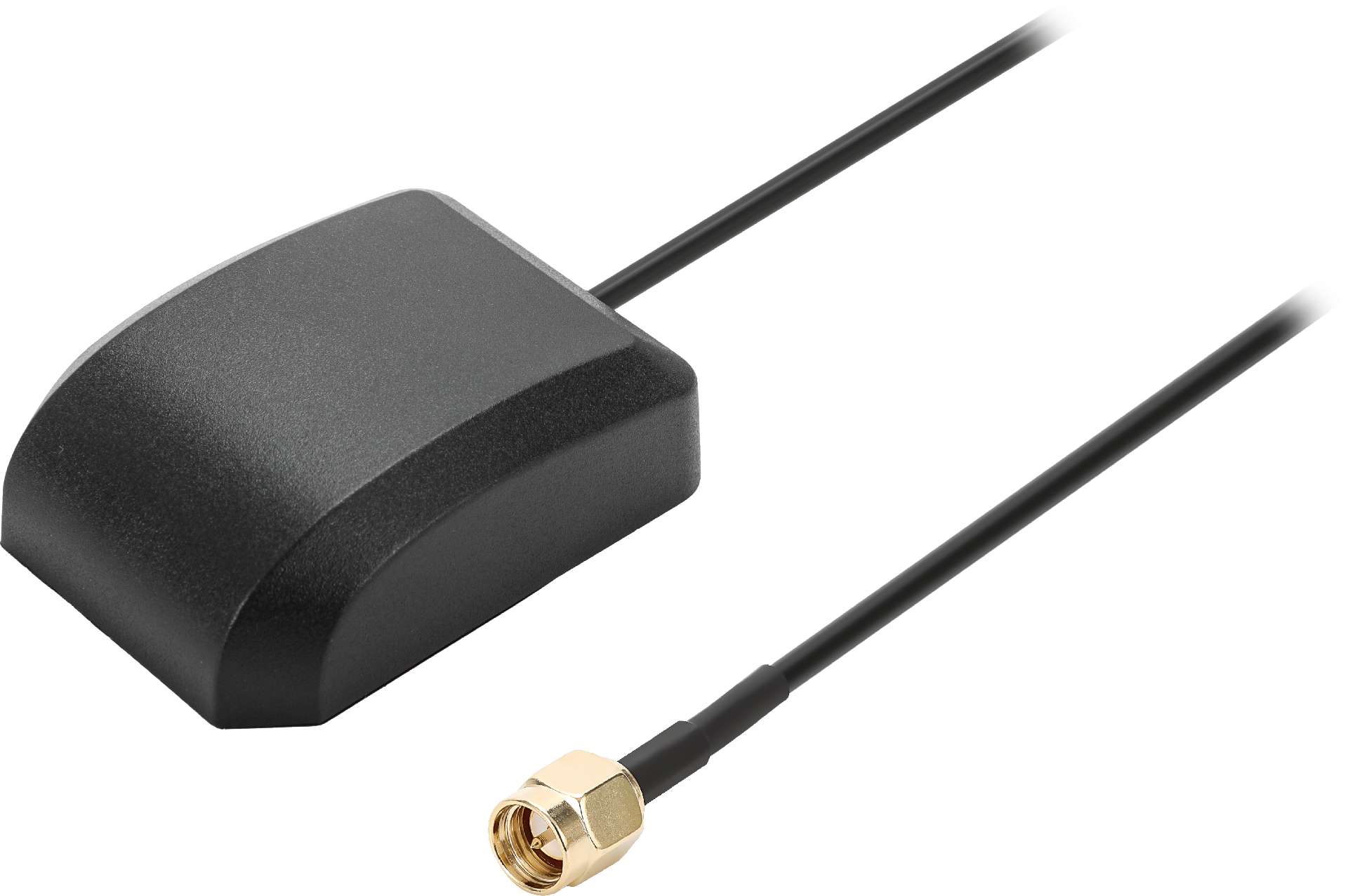

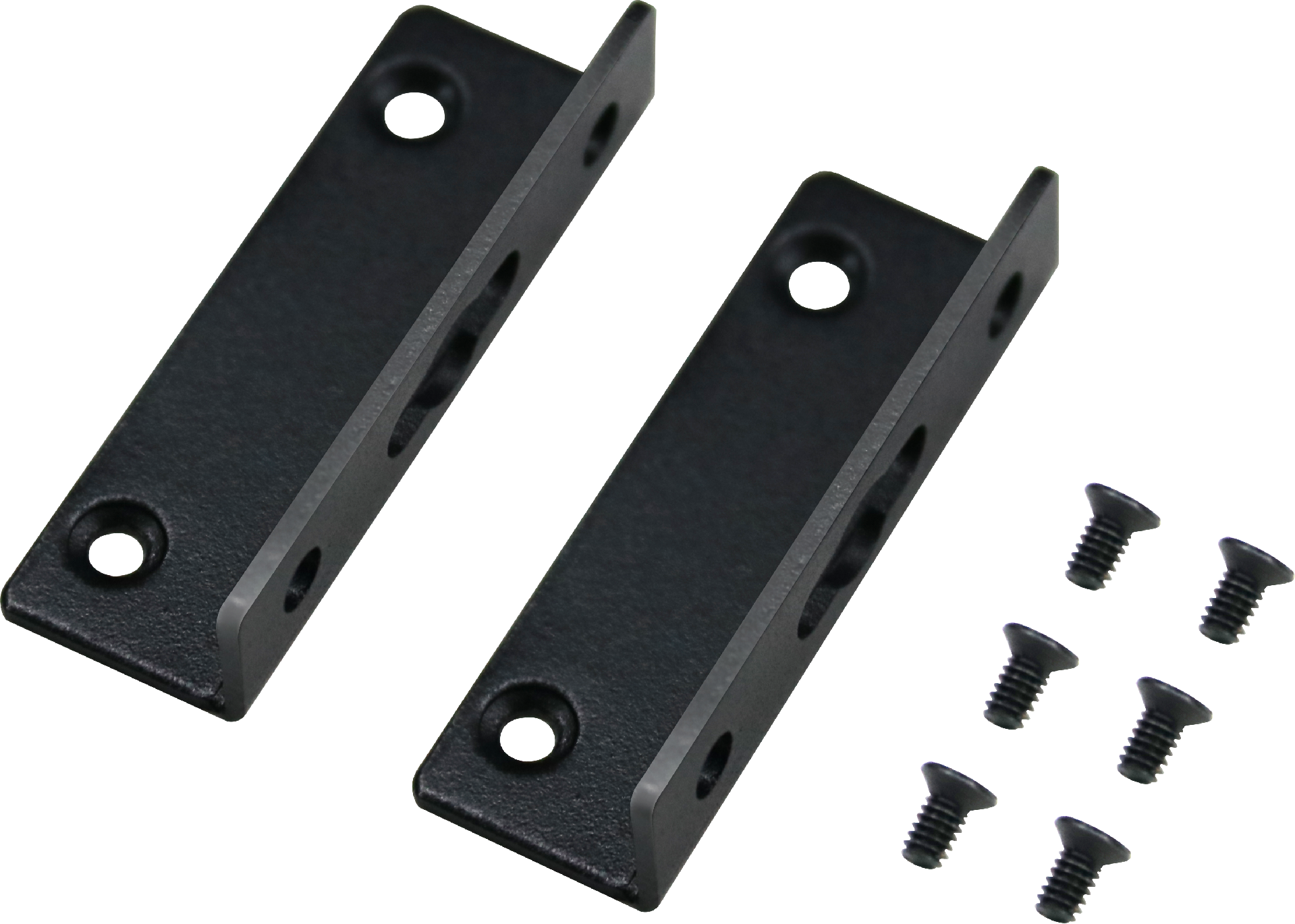

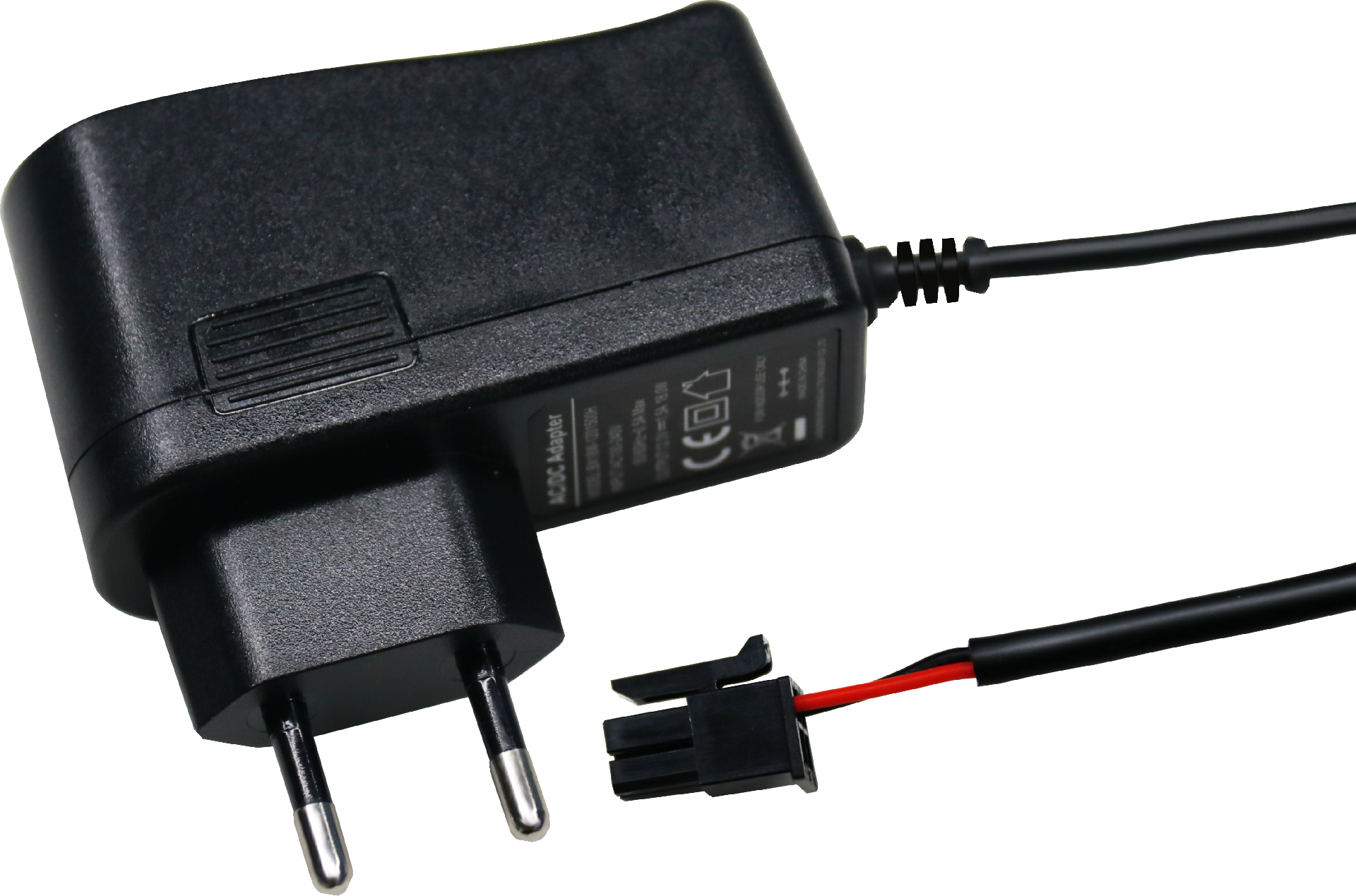

Compatible Accessories
