| Hardware |
| CPU | MIPS 24Kc @580 MHz |
| RAM | 128MB |
| FLASH | 16MB |
| Cellular Interface |
| Modem | 1 or 2 x LTE CAT4 |

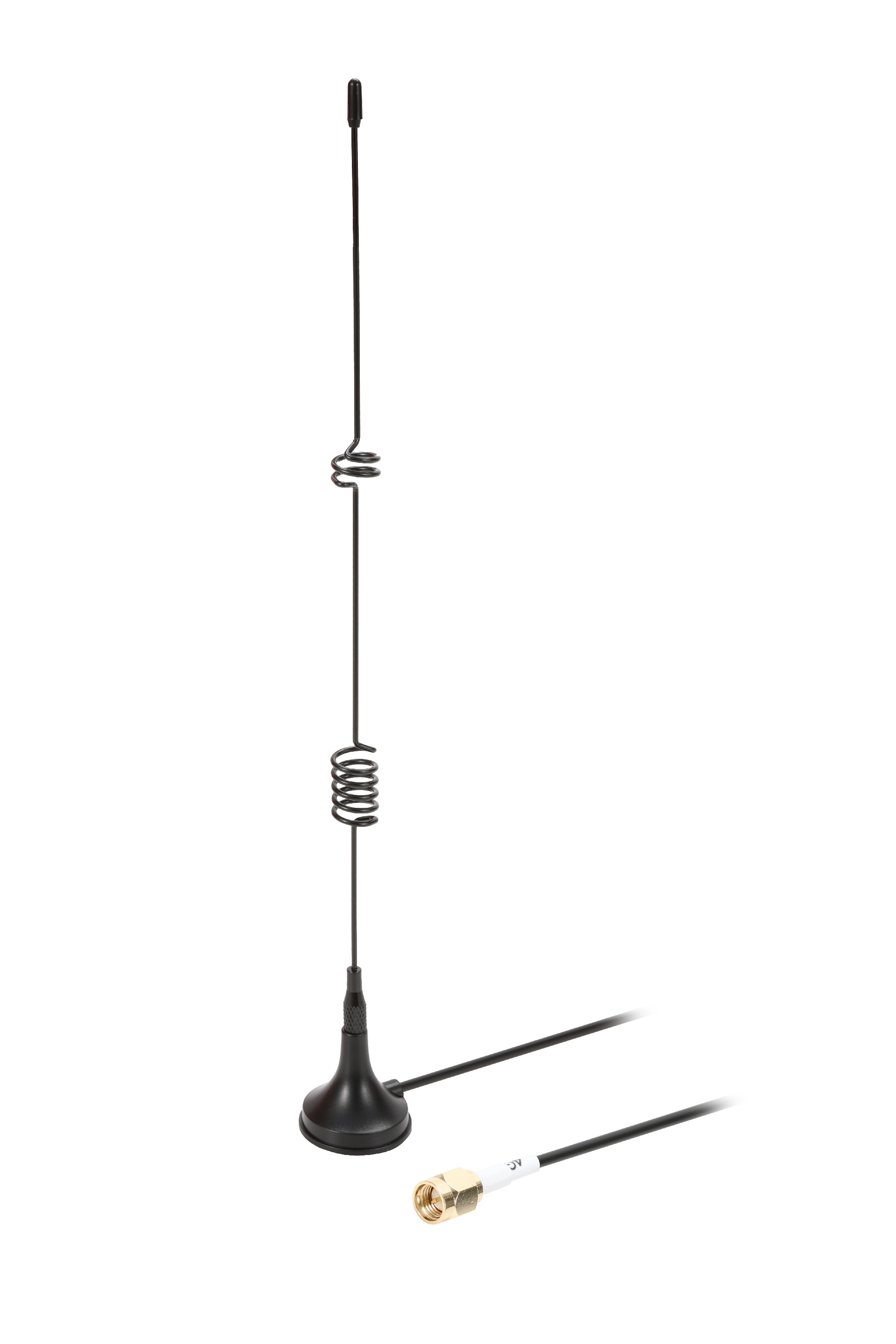

| Number of antennas | 2 |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |

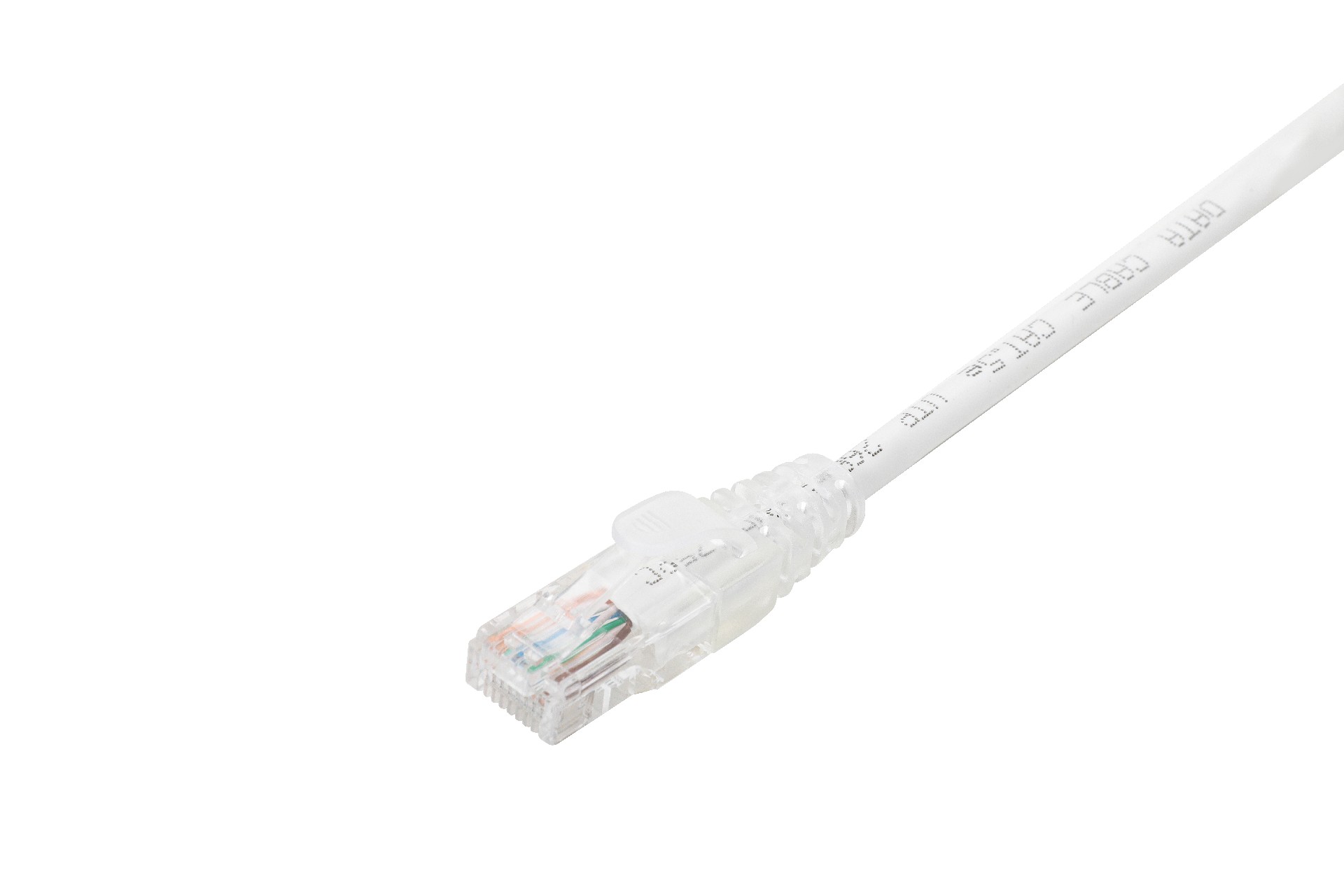

| Ethernet Interface |

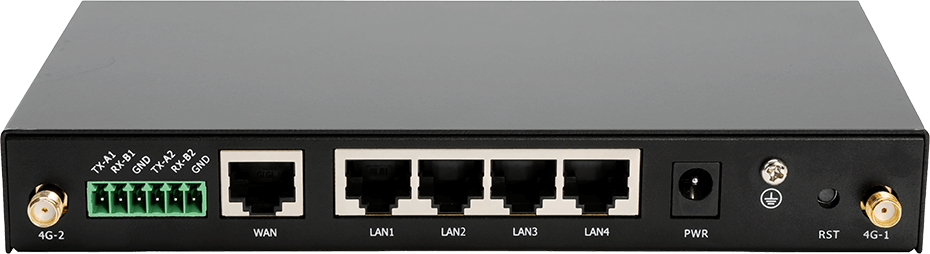

| Number of ports | 5 x 10/100 Mbps, Ethernet |
| Configuration | 5 x LAN or 4 x LAN + 1 x WAN |
| PoE output | N/A |
| Wireless interface |
| Standards | 802.11b/g/n, AP or station mode |
| Frequency bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |

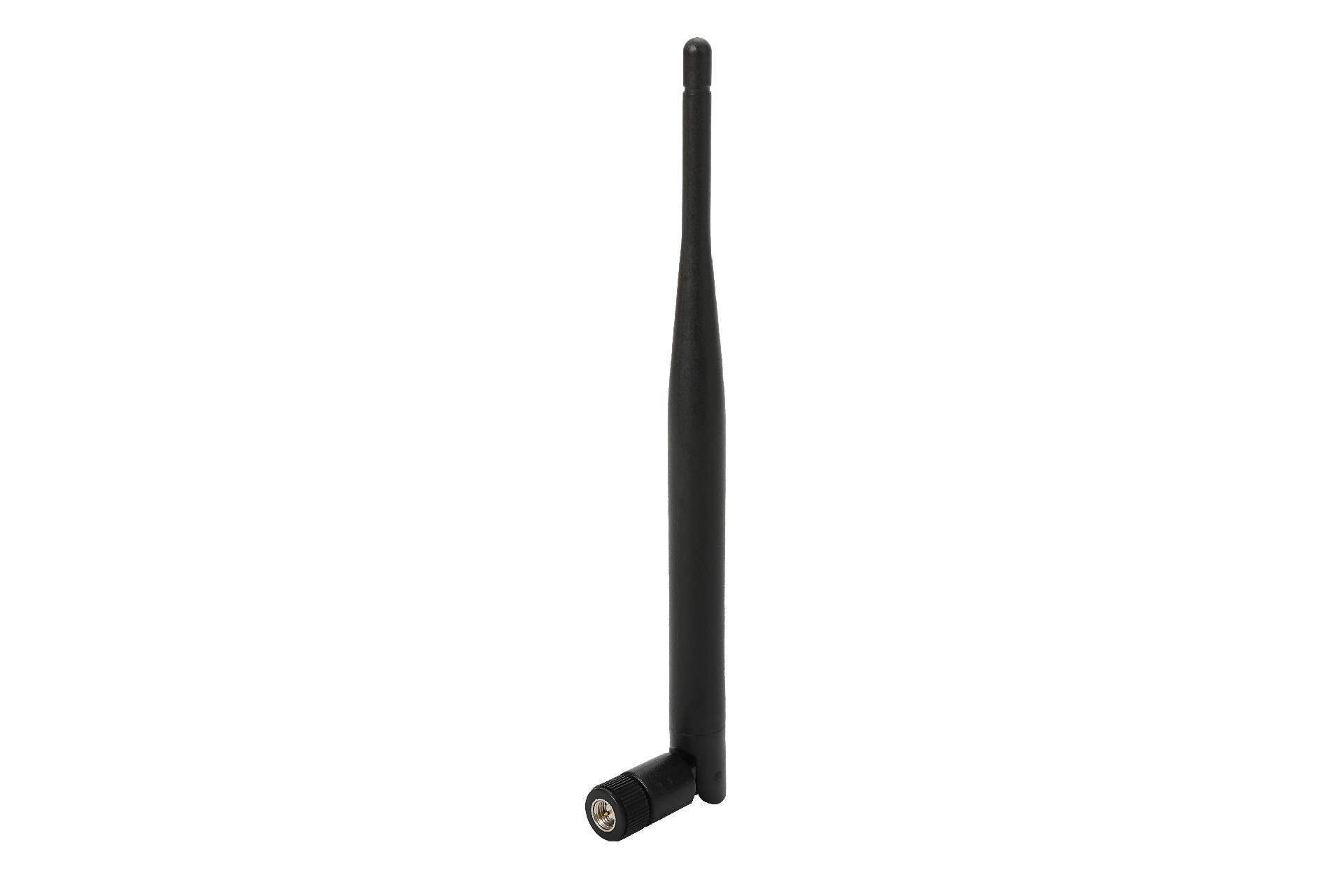

| Antennas | 1 |
| Connector | RPSMA-K |

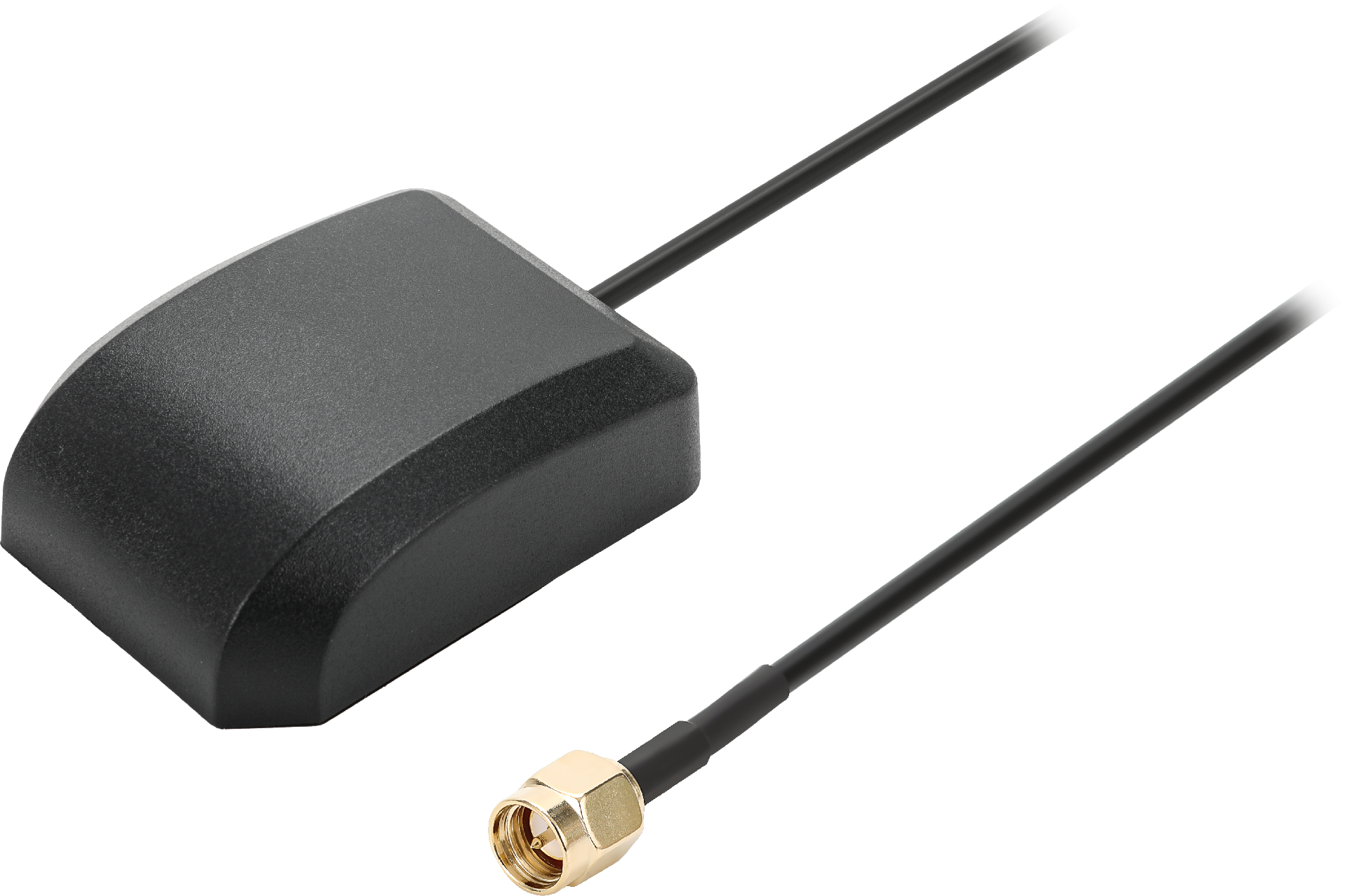

| GNSS interface |
| Number of antennas | 1 (only for GPS version) |
| Connector | SMA-K with 50 ohms impedance |
| Dead Reckoning | N/A |
| Seiral interface |
| Type | 1 x RS-232 + 1 x RS-485 serial port |
| Socket form | 1 x 6-pin 3.5 mm female socket |
| Signal definition | RX,TX,GND (RS-232)
A+,B-,GND (RS-485) |
| Baudrate | RS-232 (300-115200bps)
RS-485 (300-115200bps) |
| Software |
| Auto fail-over | Between:
2 Cellulars
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode) |
| Network protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| Network | APN, VPDN, VLAN, QoS |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc. |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| Ipsec Encryption | DES, 3DES, AES128, AES192, AES256 |
| OpenVPN Encryption | BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
AES-192-CBC, AES-256-CBC, SEED-CBC |
| Remote Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN |
| Serial ports function | Transparent, Modbus RTU, etc. |
| Power Supply and Consumption |

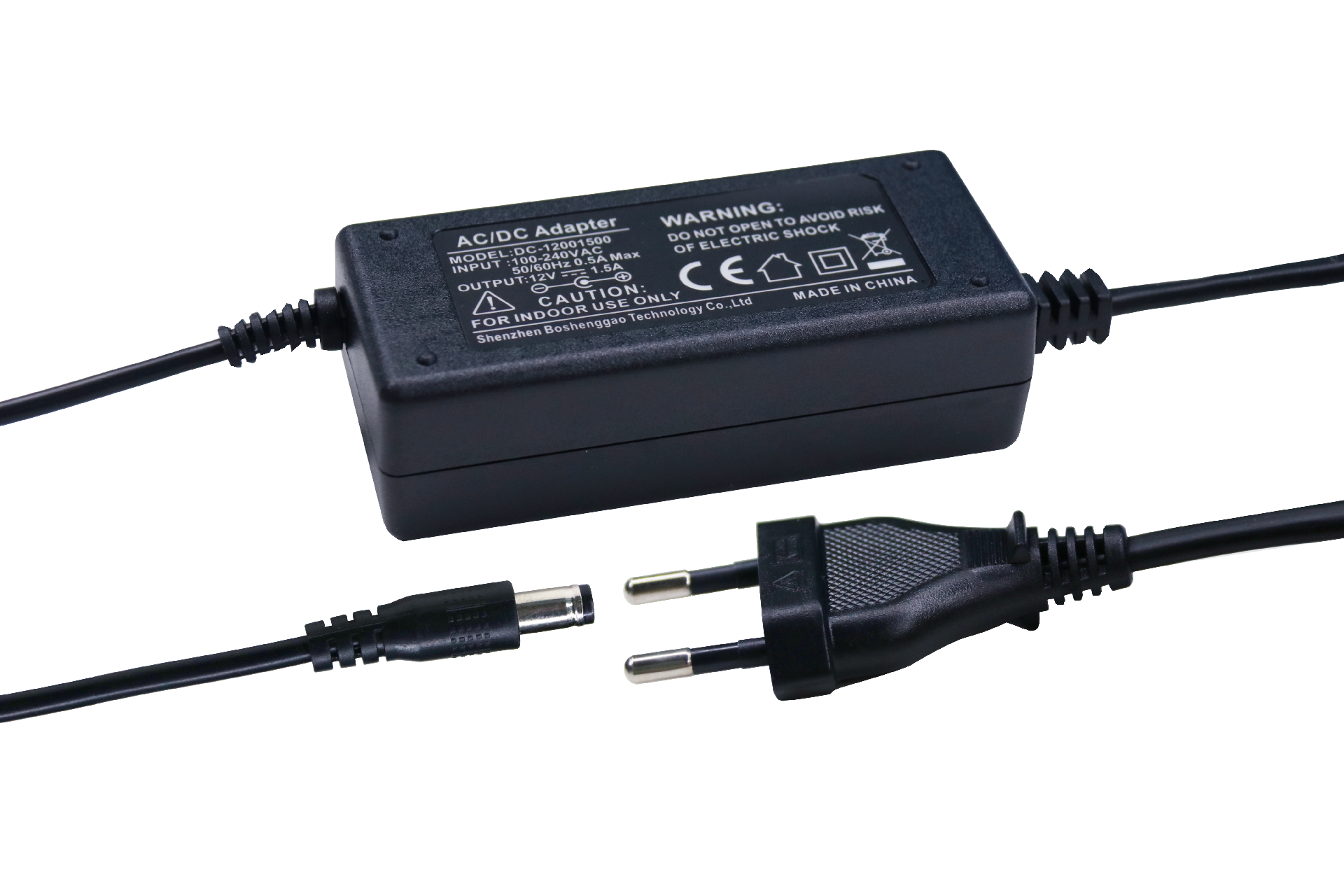

| Power Connector | DC socket |
| Voltage input | +5V~+36V DC |
| Power consumption | Idle: 200mA@12V DC
Data transceiving:550mA@12V DC |
| Others | |
| Reset button | Yes |

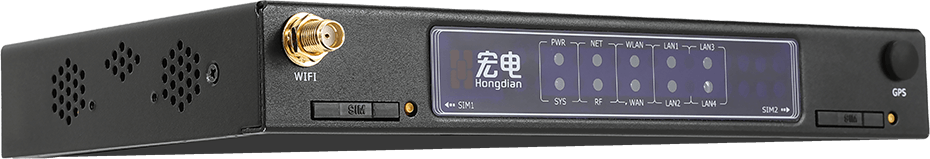

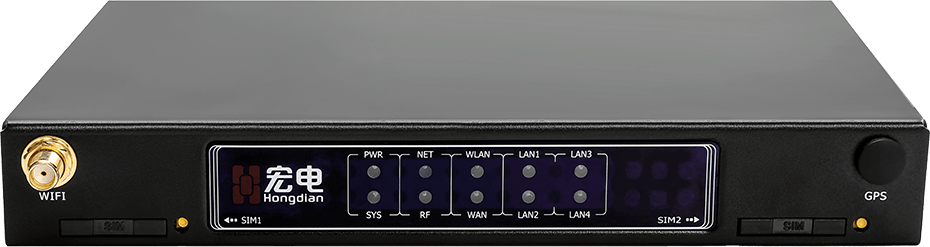

| LED indicators | 10 x indicators for PWR, SYS, WAN, LAN1~LAN4, RF, NET, WLAN |
| Hardware watchdog | Yes |

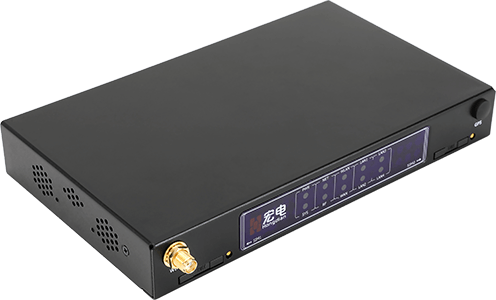

| Physical Characteristics |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 540g |
| Dimension | 176×105×25(mm) |

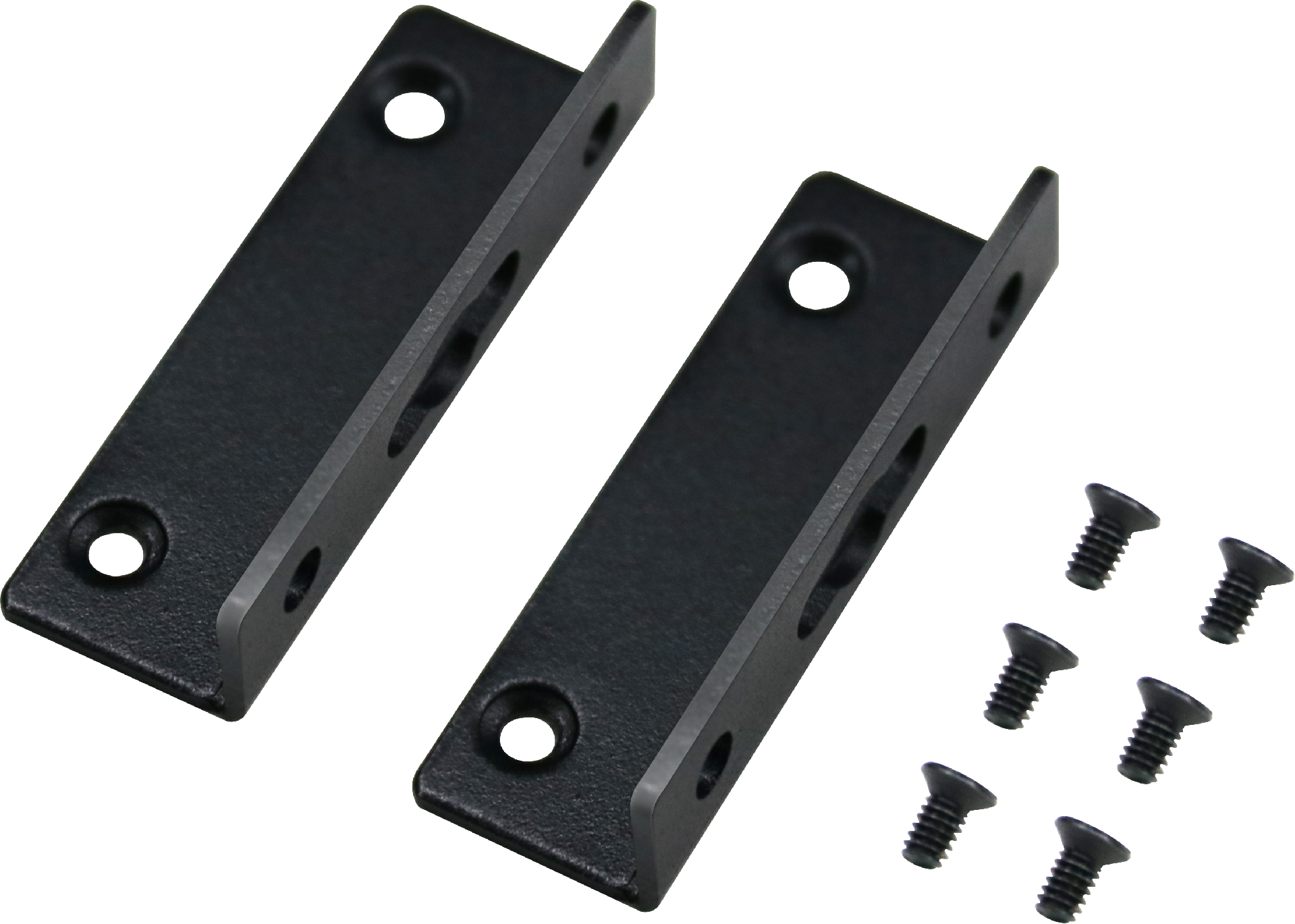

| Installations | Desktop, wall mounting |
| Operating temperature | -30 ~ +70℃ |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 0~95%(no condensation) |
| EMC |
| ESD | EN61000-4-2, level3 |
| RS | EN 61000-4-3, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
Certifications
(*In progress) | CE, FCC* |
