AIoT Gateway

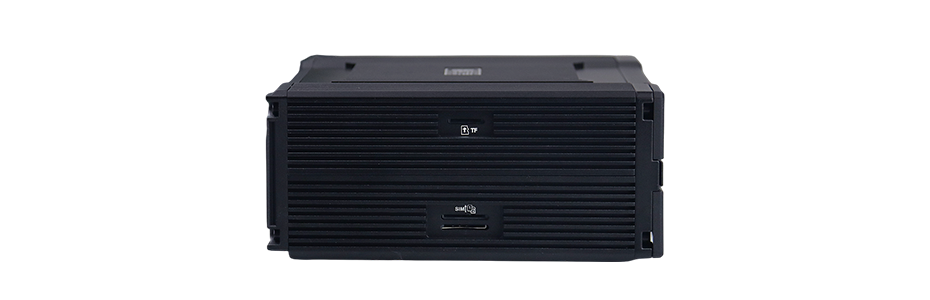

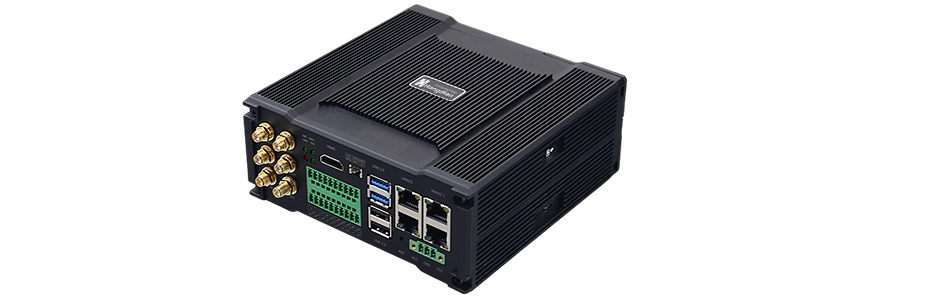

Smart 3000 5G Edge AI Box
  • 4G/5G/LoRa/WiFi/Ethernet link-backup for high reliability
  • Support multiple AI algorithms and can independently perform local video & audio AI algorithm analysis
  • Support edge control function and can become an edge intelligent control brain
  • Local AI processing and cloud platforms alarm remote collaboration
Product Introduction
Smart3000 5G Edge AI Box  is a powerful and stable AIoT intelligent terminal equipped with an AI intelligent processing chip and embedded with mature algorithms based on deep learning. It is paired with Hongdian self-developed OSDT system and integrated with Hongdian self-developed AI algorithm model, and can be widely used in scenarioses such as smart power, smart transportation, smart construction, smart gas, etc.
AI computing power

Support four major categories of AI algorithms, including dozens of industry AI algorithms such as helmet, work clothes, smoking, flame, smoke, water level, and cross-border, the computing power is as high as 6TOPS.


Edge control

Support combination with other node devices, integrating control, calculation, and analysis to provide a super brain for the site.


Stable operation

Support wired/cellular backup, multi-mode backup, software and hardware dual watchdog, never crash, 5G LAN, network cutting, multi-DNN, and frequency locking.


Rich interfaces
Equipped with rich interfaces such as RJ45, RS232, RS485, CAN, HDMI, etc., to transmit data in various ways.
Hardware
CPU 8 core CPU ARM Cortex-A76 + Dual core ARM Cortex-A55 @1.8GHz
NPU 6Tops
Memory 8GB/12GB
Built-in storage 32GB/64GB
Cellular Interface
Modem 1 × LTE Cat4 or 1 × 5G NR SA/NSA
Number of Antennas 2 (LTE version) or 4 (NR version)
Connector SMA-K
SIM 2×Mini SIM (2FF)（eSIM Optional）
Wireless Interface
Standards 802.11b/g/n/ac/ax, AP or station modes
Frequency Bands 2.4 GHz & 5GHz
Speed 1350Mbps (LTE version) or 750Mbps (NR version)
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 3 (LTE version) or 2 (NR version)
Connector SMA-K
GNSS Interface
Number of Antennas 1(Optional)
Connector SMA-K
Peripheral Interface
Ethernet 2 × LAN 10/100/1000Mbps + 2 × WAN/LAN 10/100/1000Mbps, Gigabit Ethernet
Serial 2 × RS-232 + 3 × RS-485 serial port
USB 2 × USB3.0, 2 × USB2.0
TF Card 1
Can 1
I/O 2 × Relay Switch, 2 × DI
Audio Audio IN/OUT
Display 1 × HDMI, maximum resolution 2K@30Hz, support audio
Software
Video code H.265/H.264/VP9, 4K@60fpsHD video decoding
Image processing BMP, JPG, PNG, GIF
Auto Fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network Muti-DNN, APN, VPDN, QoS，5G LAN
Docker
 Support docker container function
AI algorithm

Face application, fall application, flame application, people flow application, counting application, license plate application, area intrusion, petroleum work clothes application, phones call application, safety helmet application, reflective clothing application, smoke application, water gauge application, animal application, lighting application, mask application, motion detection.

Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform,SDLAN
Serial Ports Function Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector 3 pin socket
Voltage Input DC 9~36V, including ACC
Power Consumption Idle: 333mA@12V DC, Data transceiving: 598mA@12V DC
Others
Reset Button Yes
LED Indicators 4 x indicators for SYS, WiFi, NET, PWR
Hardware Watchdog Yes
Physical Characteristics
Ingress Protection IP30
Housing & Weight Aluminum+ABS plastic, about 900g
Dimension 145×144×64(mm)
Installations Wall-mounting
Operating Temperature -20 ~ +70 °C
Storage Temperature -40 ~ +80 °C
Relative Humidity 0~90%(no condensation)
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
File Name
Hongdian Datasheet-Smart 3000 AI Box-2024V1.0
