Industrial Embedded Series

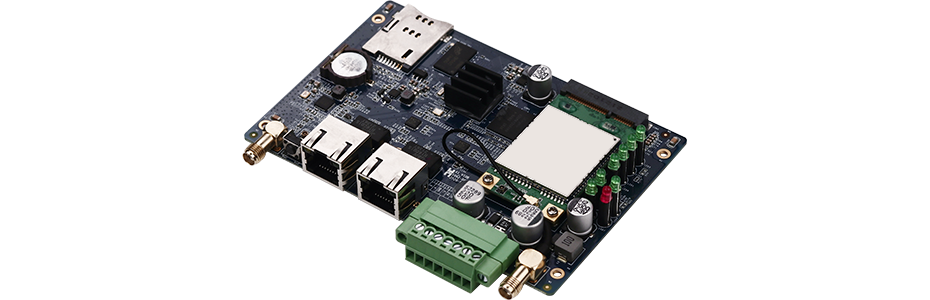

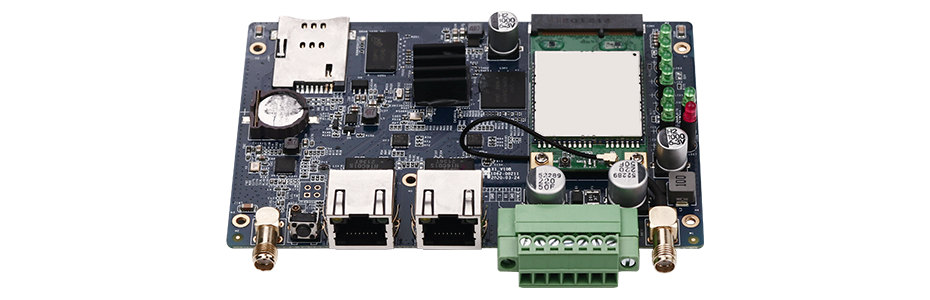

X1-E Embedded Gateway
  • Support various industrial protocols
  • 8G eMMC for the secondary develop storage of customer, TF card extended
  • Rich interfaces: RJ45, RS-232, RS-485, etc.
  • Support Hongdian Wedora RMS for cloud based management
Product Introduction
X1-E Embedded Gateway has edge computing capability for IoT. It adopts a fully industrial-grade hardware platform with powerful data collection, storage, analysis and processing capabilities. 4G wireless network and multiple bandwidth services provide stable and reliable internet access everywhere. It has good high and low temperature resistance, strong moisture-proof, anti-corrosion and insulation properties. With its excellent product quality and comprehensive security, it realizes equipment networking and provides solutions for true equipment informatization, manufacturing intelligence, edge computing and maintenance industrial internetization.
Hardware
CPU ARM Cortex-A7 @900MHz
NPU N/A
Memory 512MB
Built-in storage 8GB eMMC
Cellular Interface
Modem 1 x LTE CAT4
Module integration mini PCIe
Number of antennas 2
Connector SMA-K
SIM 2 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n, AP or station modes
Frequency Bands 2.4 GHz
Speed 150Mbps
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1
Connector SMA-K
Bluetooth N/A
GNSS Interface
Number of Antennas Optional
Peripheral Interface
Serial 1 x RS-232 + 1 x RS-485 serial port, 7-pin 3.5 mm female socket
Ethernet 2 x 10/100 Mbps, Ethernet
USB N/A
Display N/A
Software
Operating System Linux
Video code N/A
Image processing
Auto fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Network APN, VPDN, VLAN, QoS
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
Attack Prevention DDOS prevention, Anti port scanning
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform, SDLAN
Serial ports function Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector 2 pin socket
Voltage Input 5V~36V DC
Power Consumption Idle:180mA@12V DC
Data transceiving: 300mA@12V DC
Others
Reset Button Yes
LED Indicators 4 x indicators for SIG, SYS, NET, WiFi
4 x indicators for PLA1, PLA2, TX1, TX2
Hardware Watchdog Yes
Physical Characteristics
Dimension 127×83×24(mm)
Installations wall mounting
Operating Temperature -30 ~ +70 °C
Storage Temperature -40 ~ +85 °C
Relative Humidity 5 ~ 95%
