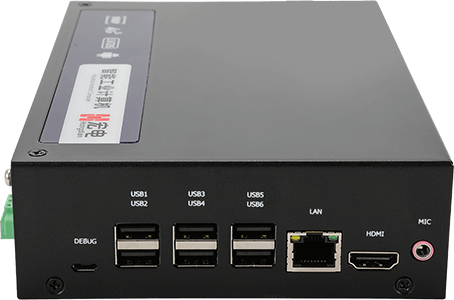

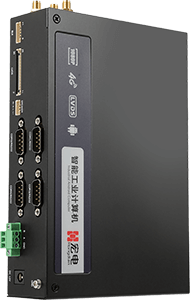

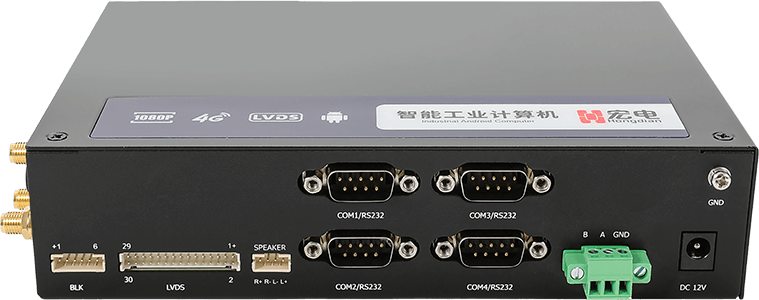

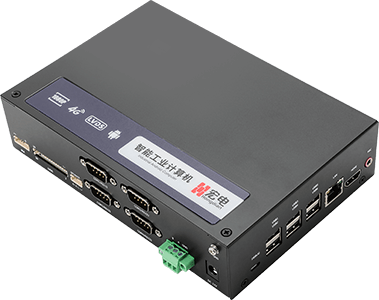

H9380F 4G Industrial Computer
  • 4-core CPU with 2GHz processor
  • Industrial design for stable working performance
  • Rich interfaces for multimedia applications
  • androids 11/Linux
Product Introduction
H9380F 4G Industrial Computer is a mid to high-end solution with an integrated 4-core arm architecture A55 processor and Mali G52 2EE graphics processor, supporting 4K decoding and 1080P encoding. There is a built-in independent NPU for lightweight artificial intelligence applications. Providing androids 11 system, mainly used in smart containers, smart vending machines, smart express cabinets, smart power exchange cabinets and other kinds of intelligent selfservice terminals.
Hardware
CPU Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz
NPU 0.8TOPS
Memory 2GB
Built-in storage 8GB
Cellular Interface
Modem 1 x LTE CAT4
Number of Antennas 1
SIM 1 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n
Frequency Bands 2.4 GHz
Speed 150Mbps
Antennas 1 (WiFi and Bluetooth)
Bluetooth BT4.0
GNSS Interface
Number of Antennas 1
Peripheral Interface
Serial 4 x RS-232 (2 x RS-232 port can be configured as a RS-485 port),DB9 male connector ;
1 x RS-485 serial port,  3-pin 3.5 mm female socket
Ethernet 1 x 10/100/1000 Mbps, Gigabit Ethernet
USB 6 x USB 2.0,  1 x OTG
Display 1 x  HDMI 2.0, 1 x LVDS
Display Performance
Liquid Crystal N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance N/A
Glass Material
Max Touch Points
Software
Operating System androids 11/Linux
Video code H.265/H.264/VP9 4K@60fpsHD video decoding
H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector DC socket
Voltage Input 12V DC
Power Consumption Less than 10W (only system)
Others
Reset Button Yes
LED Indicators 3 x indicators for PWR, SYS, 4G
Hardware Watchdog Yes
Physical Characteristics
Ingress Protection IP30
Housing Metal
Dimension 210×130×44.6(mm)
Installations Wall-mounting
Operating Temperature -20 ~ +70 °C
Storage Temperature -40 ~ +85 °C
Relative Humidity 5 ~ 95%
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
File Name
Hongdian Datasheet-H9380F 4G Industrial Computer_2024V1.0
Product Model 4G modem Interface Region
WLAN RJ45 RS232 RS485 USB GPS

H9380F

4G Industrial Computer

H9380F-EU LTE-FDD:B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41
UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8
GSM/GPRS/EDGE:900/1800MHz 		1 1 4 1 6x USB 2.0
1x OTG 		1 Europe, Asia, Africa
H9380F-AFX LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5 		1 1 4 1 6x USB 2.0
1x OTG 		1 North America
H9380F-AUX LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD:B40
WCDMA:B2/B3/B5/B8 		1 1 4 1 6x USB 2.0
1x OTG 		1 South America,
Australia, Africa
H9380F-JP LTE-FDD:B1/3/8/18/19/26 1 1 4 1 6x USB 2.0
1x OTG 		1 Japan
