    Cellular Router

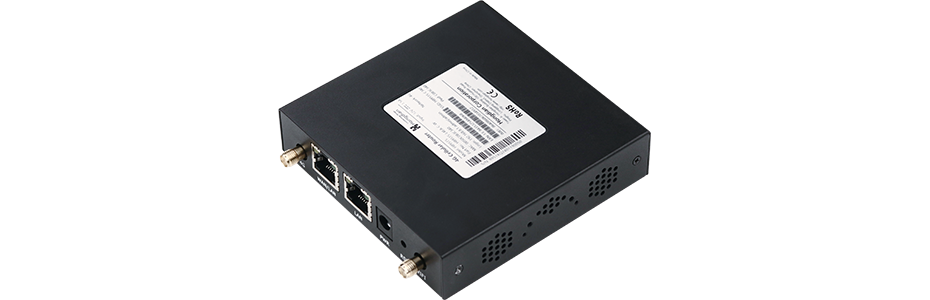

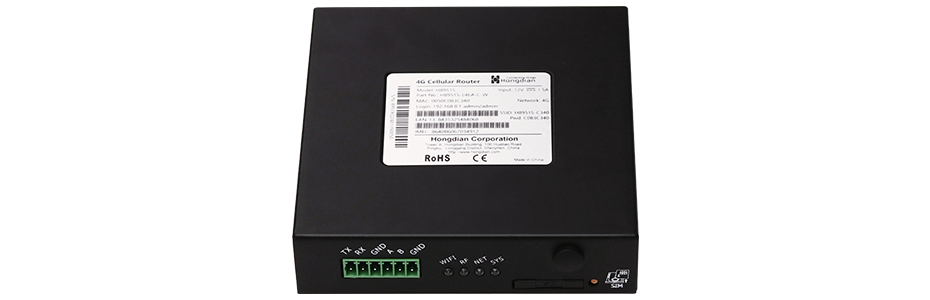

    H8951 4G Cellular VPN Router
    • LTE Cat4/WiFi/Ethernet link-backup for Internet auto-failover
    • Advanced VPN protocols integrated, provide secure network
    • Support RS-232/RS-485
    • Support Hongdian Wedora RMS for cloud based management
    Product Introduction
    H8951 4G Cellular VPN Router is the staring product among the Hongdian's incredible wireless communication product family, dedicated for professional M2M & IoT applications. It provides excellent wireless communication solution to customer by connecting their end devices towards their business success.  It supports RS-232 or RS-485 interface, with ultra-high cost performance. It has been approved by global customers who are using its cellular based connection solution for all their assets/machines to get online, Wi-Fi station and Ethernet WAN can also be configured to help you build up different network topologies. Plus Links auto-failover, VPN data encryption, and multi-VPN tunnel backup machanism, giving you a secure and extremely reliable networking solution.
    • Single SIM cold/hot backup, cellular/wired backup
    • 1 x LAN port & 1 x WAN port
    • 5-36V DC Wide range power input
    • Compact design
      • VPN
    • Support GRE/EoIP/L2TP/PPTP/IPsec/DMVPN/OpenVPN
    • GRE over IPsec, IPsec over PPTP/L2TP
    • IPsec with X.509 CA
    • Stateful GRE
    Network Flexibility
    • Support 4G+/4G/3G/2G network,
    • Support worldwide band
    • Support WAN, PPPoE, Static IP, DHCP client
    • Support 802.11b/g/n
    Advance Feature
    • Static routing, Policy routing, RIPv2, OSPF, BGP
    • Support DNS proxy  Dynamic DNS (DDNS)
    • LCP/ICMP/flow/heartbeat check, ensure network usability
    • Hardware Watchdog
    • Multiple VLAN
    • Load balancing, QoS, NTP
    • Support IPV6
    • Support Radius, TACACS+
    • Support schedule task
    Management
    • Hongdian Wedora RMS, encrypted connection, remote access to device’s GUI/CLI
    • Remote access to end device’s GUI/CLI
    • Support WEB, CLI, SSH local/remote access
    • Support IPfix
    • Support local/remote firmware and patch update
    • Support configuration backup and import
    • Local/Remote log for easy debugging
    • Support SNMPv2/v3
    Hardware
    CPU MIPS 24Kc @580 MHz
    RAM 128MB
    FLASH 16MB
    Cellular Interface
    Modem 1 x LTE CAT4
    Number of antennas 2
    Connector SMA-K
    SIM 1 x Mini SIM (2FF)
    Ethernet Interface
    Number of ports 2 x 10/100 Mbps, Ethernet
    Configuration 2 x LAN or 1 x LAN + 1 x WAN
    PoE output N/A
    Wireless interface
    Standards 802.11b/g/n, AP or station mode
    Frequency bands 2.4 GHz
    Speed 150Mbps
    Security WEP, WPA, WPA2
    Encryption 64/128 AES, TKIP
    Antennas 1
    Connector SMA-K
    GNSS interface
    Number of antennas N/A
    Connector
    Dead Reckoning
    Seiral interface
    Type 1 x RS-232 or 1 x RS-485 serial port
    Socket form 1 x 6-pin 3.5 mm female socket
    Signal definition RX,TX,GND (RS-232)
    A+,B-,GND (RS-485)
    Baudrate RS-232 (300-115200bps)
    RS-485 (300-115200bps)
    Software
    Auto fail-over Between:
    Cellular and WAN
    Cellular and Wi-Fi (station mode)
    WAN and Wi-Fi (station mode)
    Network protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
    Network APN, VPDN, VLAN, QoS
    Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc.
    Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
    VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
    Ipsec Encryption DES, 3DES, AES128, AES192, AES256
    OpenVPN Encryption BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
    AES-192-CBC, AES-256-CBC, SEED-CBC
    Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN
    Serial ports function Transparent, Modbus RTU, etc.
    Power Supply and Consumption
    Power Connector DC socket
    Voltage input +5V~+36V DC
    Power consumption Idle: 100mA@12V DC
    Data transceiving: 350mA@12V DC
    Others
    Reset button Yes
    LED indicators 4 x indicators for WiFi, RF, NET, SYS
    Hardware watchdog Yes
    Physical Characteristics
    Ingress protection IP30
    Housing & Weight Metal, 300g
    Dimension 99.7×98.8×23.4(mm)
    Installations Desktop, wall mounting
    Operating temperature -30 ~ +75℃
    Storage temperature -40 ~ +85 °C
    Relative humidity 0~95%(no condensation)
    EMC
    ESD EN61000-4-2, level3
    RS EN 61000-4-3, level3
    EFT EN 61000-4-4, level3
    CS EN 61000-4-6, level3
    Certifications
    (*In progress)         		CE, FCC, AT&T, Verizon, T-mobiles
    File Name
    Hongdian Application Guide - H8951-Link Backup-WLAN_Modem
    Hongdian Specification-H8951 4G Cellular VPN Router-2024
    Hongdian User Manual-H8951 4G Cellular VPN Router-2024
    Hongdian Datasheet-H8951 4G Cellualr VPN Router-2024V1.0
    Product Part No. Network Frequency Interface Certification Region
    SIM RJ45 WLAN
    H8951
    4G Cellular VPN Router
    		H8951-L4-ENEA LTE Cat 4 4G( LTE-FDD): B1/B3/B5/B7/B8/B20
    4G (LTE-TDD): B38/B40/B41
    3G: B1/B5/B8
    2G: B3/B8     		1 2 Wi-Fi 4 CE, RoHS, E-mark* Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
    H8951-L1-ENEA LTE Cat 1 FCC, IC, PTCRB North America
    H8951-L4-ENSA LTE Cat 4 4G (FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28
    4G (LTE-TDD): B40
    3G: B2/B3/B5/B8     		RCM*, Anatel* Oceania, South America
    H8951-L4-ENNA LTE Cat 4 4G( LTE-FDD): B2/B4/B5/B12/B13/B25/B26;
    3G: B2/B4/B5     		FCC, IC, PTCRB North America
    H8951-L1-ENNA LTE Cat 1
    H8951-L4-ENJP LTE Cat 4 4G (FDD-LTE): B1/B3/B8/B18/B19/B26/B28
    4G (LTE-TDD): B39/B41
    3G: B1/B6/B8/B19     		VCCI*, JATE*, TELEC* Japan
    For more detailed information about the frequency or any specific requirement, please contact your sales representitive.

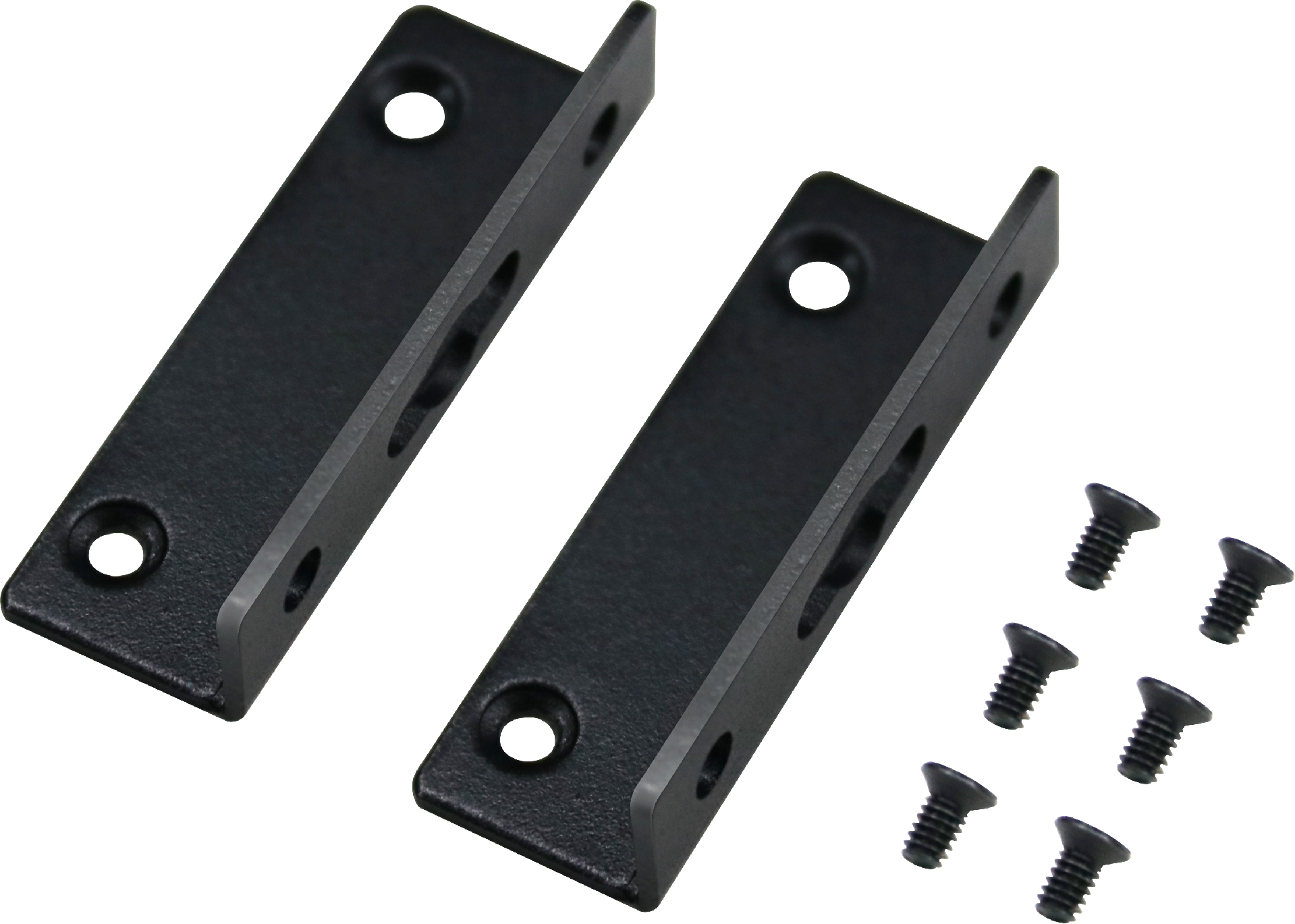

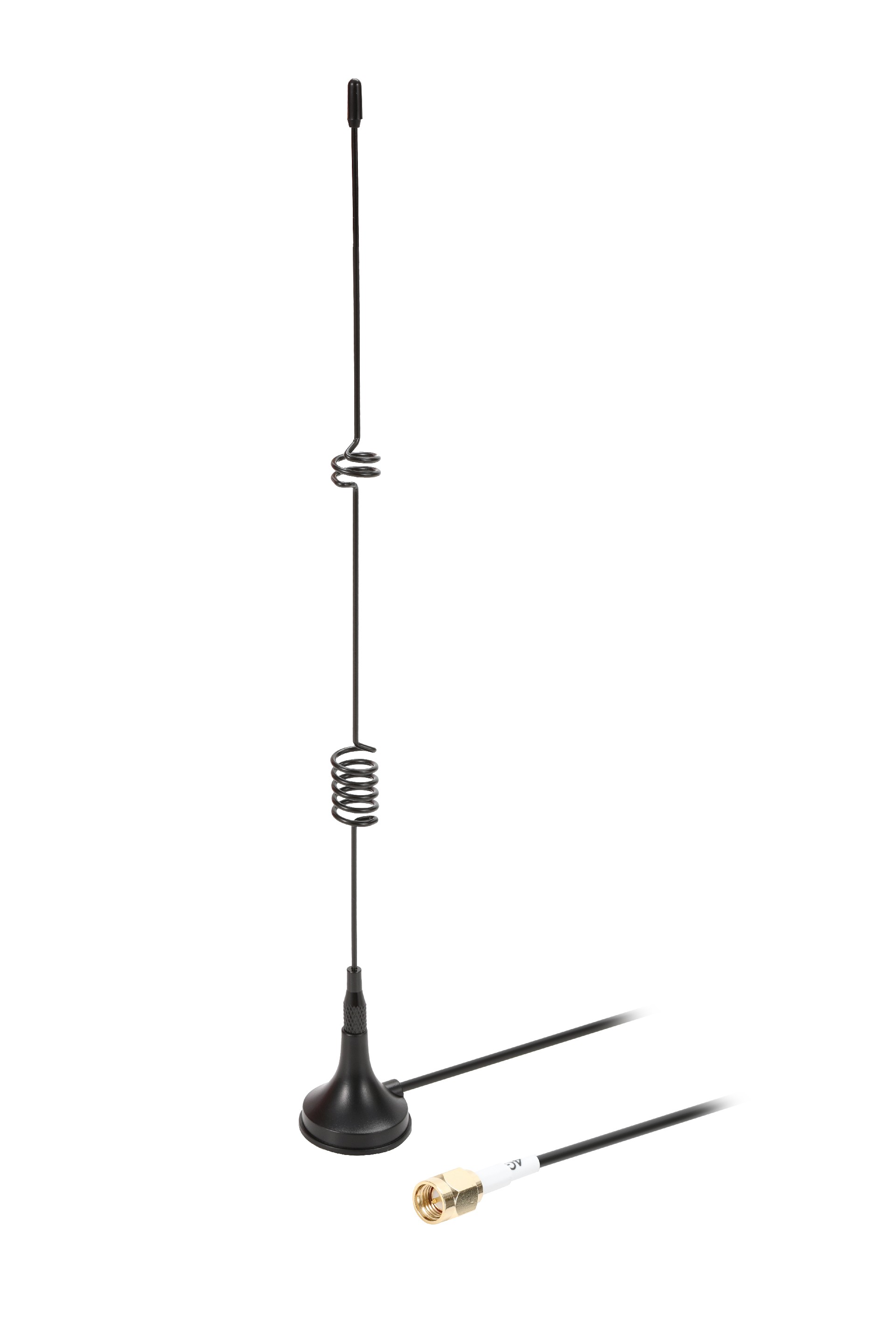

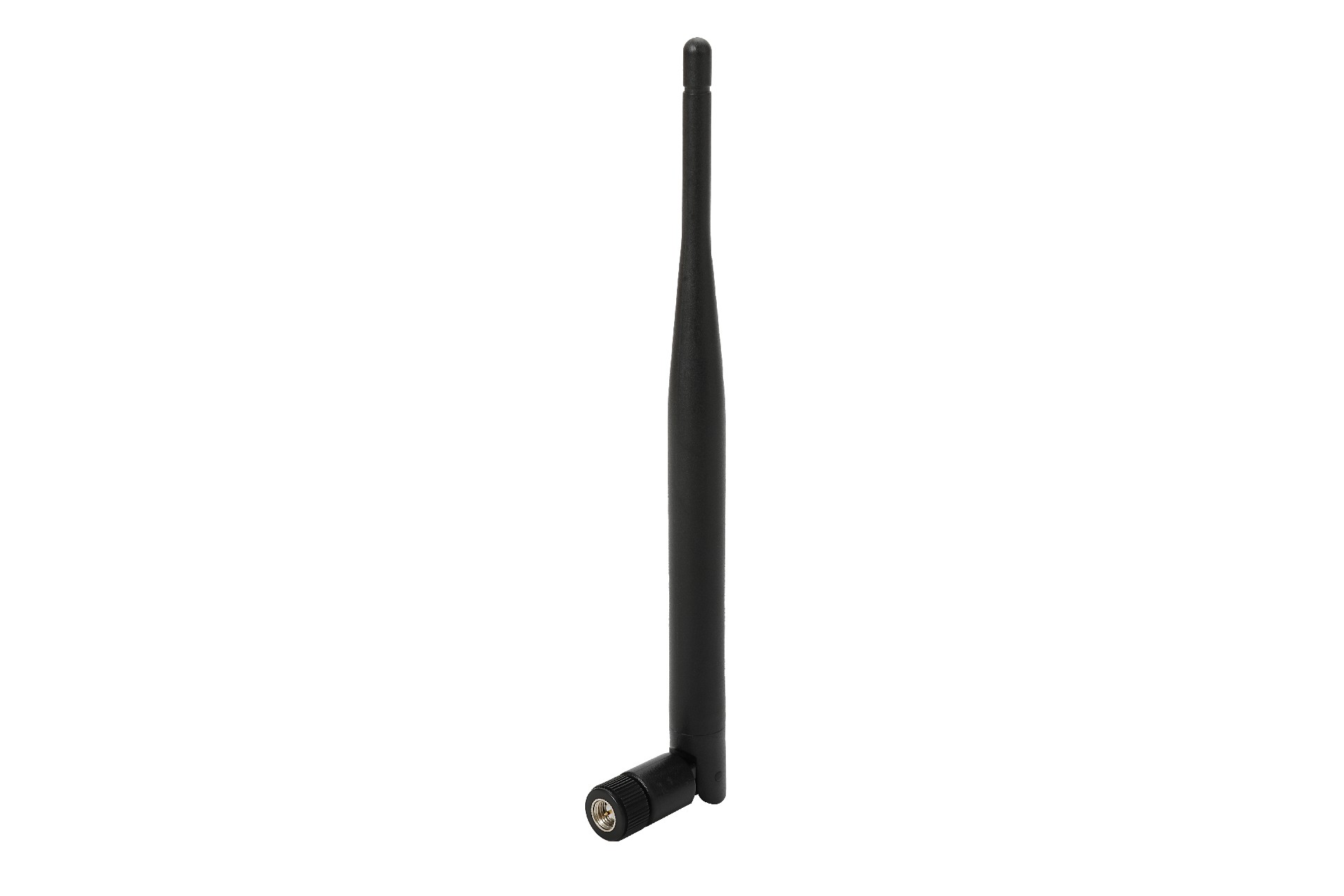

    Compatible Accessories
