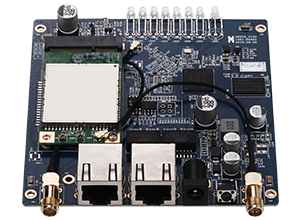

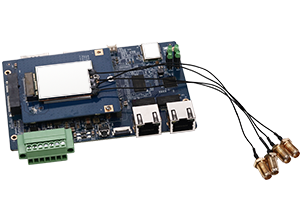

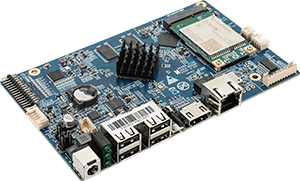

Industrial Embedded Series
Hongdian 5G vehicle gateway series integrates integrated gateway services and vehicle-mounted video functions to meet the needs of high-speed vehicle mobiles network and realize functions such as high-precision vehicle positioning, video monitoring and transmission, and driver status monitoring. It is widely used in 5G smart ambulance, 5G smart sanitation vehicle, 5G smart logistics vehicle, 5G smart bus and other scenarioses.
contact us
Product Value
Product Advantages
5GLAN dual transmitting and receiving
Support mainstream communication protocols such as Modbus TCP/RTU, MQTT, etc.
Meet the requirements of various Wi-Fi applications
Widely used in vehicles and industrial sites
Product Comparison Table
Product
Vehicle Gateway H3380 H3960
Hardware
CPU Quad-core ARM Cortex A7, 717MHz RK3568, highest frequency: 2.0GHz; 64 bits
Memory 512MB 2GB
Built-in storage 32MB+8GB eMMC 8GB
Cellular Interface
Modem 1 x 5G NR SA/NSA or 1 x LTE CAT4 & 1 x 5G NR SA/NSA 1 or 2 x 5G NR SA/NSA
Number of Antennas 4 or 5 4 or 8
SIM 2 x Mini SIM (2FF) 2 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n/ac, AP or station modes 802.11b/g/n, AP or station modes
Frequency Bands 2.4 GHz & 5GHz 2.4 GHz & 5GHz
Speed 1167Mbps 1167Mbps
Antennas 2 2
GNSS Interface
Number of Antennas 1 1
Peripheral Interface
Serial 2 x RS-232 serial port; 3-pin 3.5 mm female socket
6 x RS-485 serial port, 3-pin 3.5 mm female socket 		4 x RS-232 (2 RS232 port can be configured as a RS485 port),DB9 male connector ;
1 x RS-485 serial port, 3-pin 3.5 mm female socket
Can Optional Optional
Ethernet 5 x 10/100/1000 Mbps, Gigabit Ethernet 4 x 10/100/1000 Mbps, Gigabit Ethernet
USB USB 2.0 x 1 USB 2.0 x 1
TF Card Optional
Display N/A HDMI 2.0 x 1, LVDS x1
Display Performance
Liquid Crystal N/A N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance N/A N/A
Glass Material
Max Touch Points
Software
Operating System Hongdian Router OS Linux
Video code H.265/H.264/VP9 4K@60fpsHD video decoding
H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector 4 pin socket DC socket
Voltage Input 9 ~ 48V DC 12V DC
Power Consumption Less than 15 W Less than 15 W (only system)
Others
Reset Button Yes Yes
LED Indicators 4 indicators for 4G/5G, NET,WIFI,SYS 3 indicators for PWR, SYS, 4G
Hardware Watchdog Yes Yes
Physical Characteristics
Ingress Protection IP30 IP30
Housing & Weight Metal Metal
Dimension 170*150*27mm 210×130×44.6mm
Installations Wall-mounting Wall-mounting
Operating Temperature -20 ~ +70 °C -20 ~ +70 °C
Storage Temperature -40 ~ +85 °C -40 ~ +85 °C
Relative Humidity 5 ~ 95% 5 ~ 95%
Certifications
(*In progress)
