androids Industrial Computer

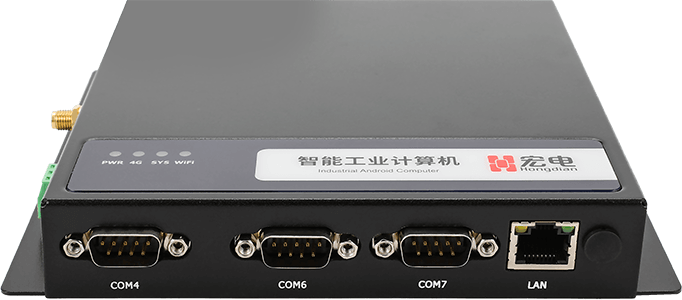

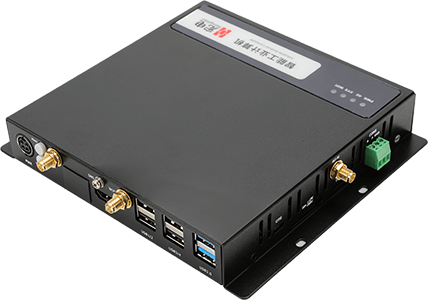

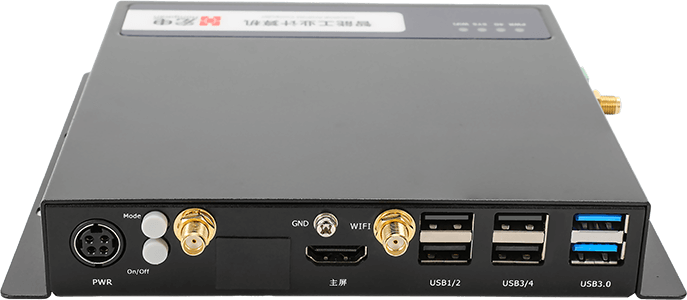

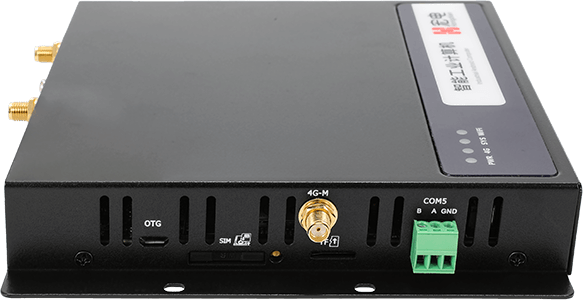

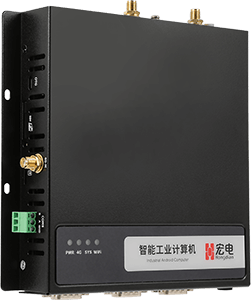

H9380P 4G Industrial Computer
  • Dual core ARM Cortex-A72+Quad core ARM Cortex-A53 @1.8GHz
  • 4K 10bit@60fps video decoding
  • Rich interfaces for multimedia applications
  • androids OS/ Linux
Product Introduction
H9380P 4G Industrial Computer is a highly reliable and stable intelligent device designed with Cortex microprocessor and androids operating system. It provides running environment such as androids 7.1.2, supporting 4G full network pass real-time communication, city services and business networking application APP can run directly in the system to provide convenient interactive services for end users. Its rich peripheral interfaces and super image processing capability can be widely used in urban services and new retail areas, and can meet the needs of many industry applications such as face payment smart vending machines, smart coffee machines, smart delivery cabinets, robots , IoT fields, vehicle control, and medical classes.
  • High Performance CPU, Large Memory, androids System.
  • Full Interfaces Types(RJ45, RS232, USB, HDMI, VGA, SPK, MIC).
  • High-speed 3G/4G Link Auto Switch, Auto Failover Recovery.
  • APP Operation, Easy Secondary Development, Device Status Monitoring.
  • Support Multiple Screens Display, Self-adaption Screen Size.
  • Intelligent Temperature Control Inside, Access External Sensors.
  • GPS Inside, Hongdian Cloud Platform Remote Maintenance .
Hardware
CPU Dual core ARM Cortex-A72 + Quad core ARM Cortex-A53 @1.8GHz
NPU N/A
Memory 2GB
Built-in storage 16GB
Cellular Interface
Modem 1 x LTE  CAT4
Number of Antennas 1
SIM 1 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n
Frequency Bands 2.4 GHz
Speed 150Mbps
Antennas 1 (WiFi and Bluetooth)
Bluetooth BT4.0
GNSS Interface
Number of Antennas N/A
Peripheral Interface
Serial 3 x RS-232 (1 x RS-232 port can be configured as a RS-485 port),DB9 male connector)
1 x RS-485 serial port,  3-pin 3.5 mm female socket
Ethernet 1x 10/100/1000 Mbps, Gigabit Ethernet
USB 4 x USB 2.0, 2 x USB 3.0, 1 x OTG
Display 1 x HDMI 2.0
Display Performance
Liquid Crystal N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance N/A
Glass Material
Max Touch Points
Software
Operating System androids 7.1.2/Linux
Video code H.265/H.264/VP9 4K@60fpsHD video decoding
Image processing BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector 4 pin aviation connector
Voltage Input 12V DC
Power Consumption Less than 10W (only system)
Others
Reset Button Yes
LED Indicators 4 x indicators for PWR, SYS, 4G, WIFI
Hardware Watchdog Yes
Physical Characteristics
Ingress Protection IP30
Housing Metal
Dimension 170x150x27(mm)
Installations Wall-mounting
Operating Temperature -20 ~ +70 °C
Storage Temperature -40 ~ +85 °C
Relative Humidity 5 ~ 95%
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
File Name
Hongdian Specification-H9380P 4G Industrial Computer-2024
Hongdian User Manual-H9380P 4G Industrial Computer-2024
Hongdian Datasheet-H9380P 4G Industrial Computer_2024V1.0
Product Model 4G modem Interface Region
WLAN RJ45 RS232 RS485 USB

H9380P

4G Industrial Computer

H9380P-EU LTE-FDD:B1/B3/B5/B7/B8/B20
LTE-TDD:B38/B40/B41
UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8
GSM/GPRS/EDGE:900/1800MHz 		1 1 3 1 4x USB 2.0
2x USB 3.0
1x OTG 		Europe, Asia, Africa
H9380P-AFX LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5 		1 1 3 1 4x USB 2.0
2x USB 3.0
1x OTG 		North America
H9380P-AUX LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD:B40,WCDMA,B2/B3/B5/B8 		1 1 3 1 4x USB 2.0
2x USB 3.0
1x OTG 		South America, Australia, Africa
H9380P-JP LTE-FDD:B1/3/8/18/19/26 1 1 3 1 4x USB 2.0
2x USB 3.0
1x OTG 		Japan

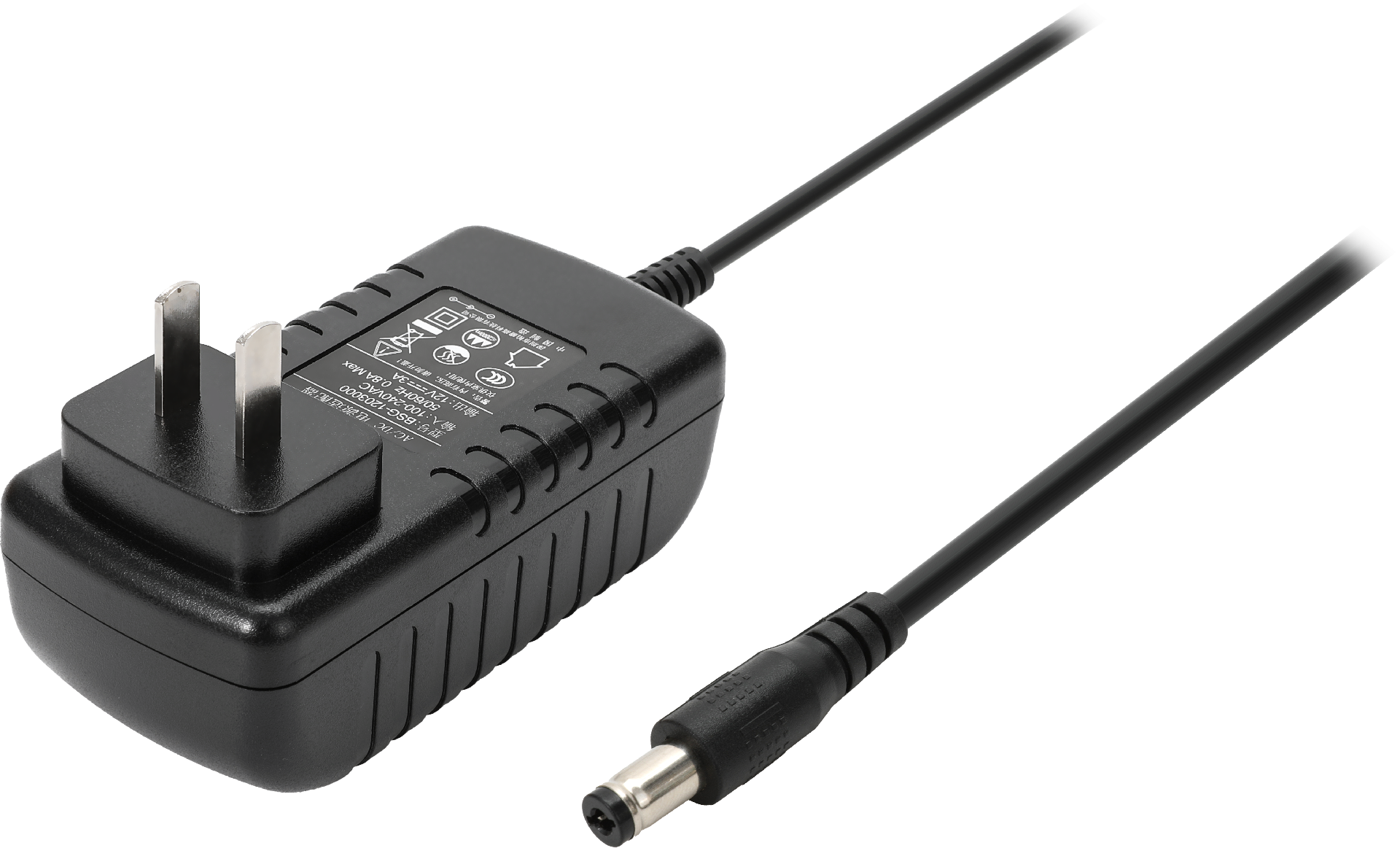

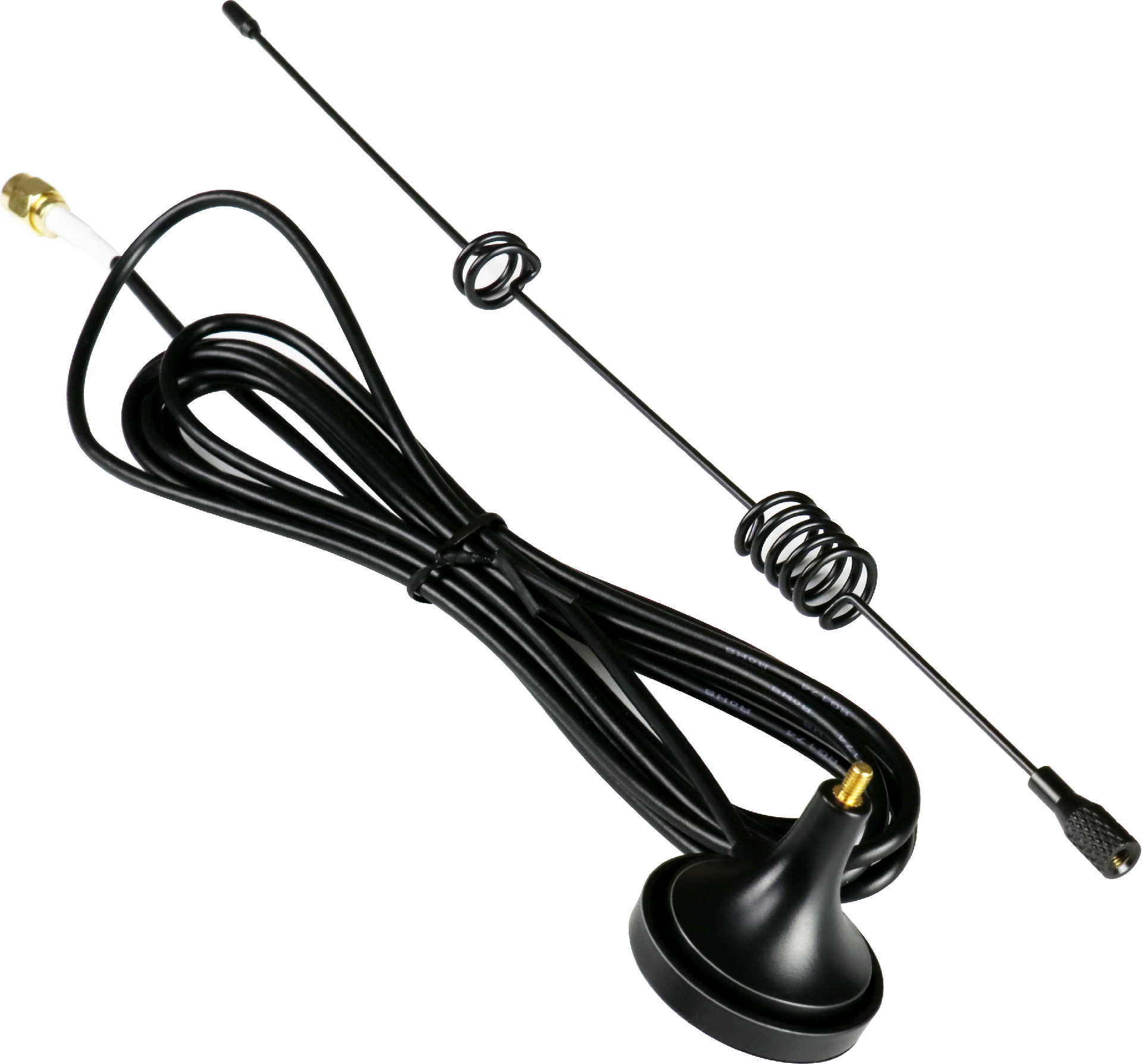

Compatible Accessories
