Edge-computing Gateway

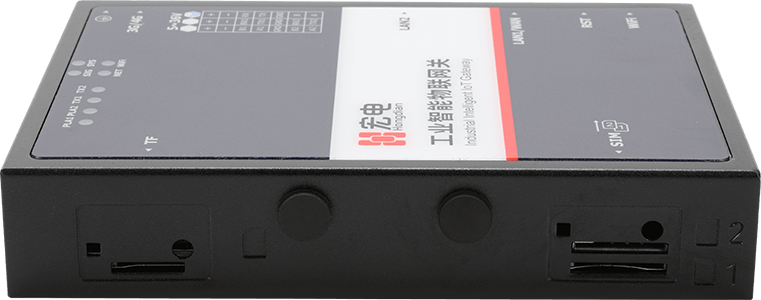

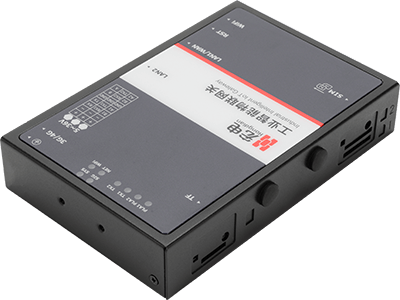

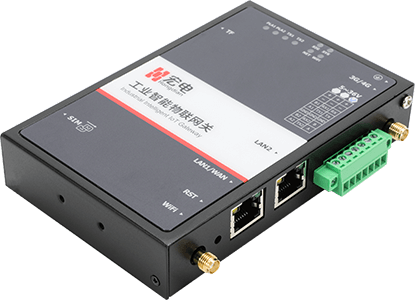

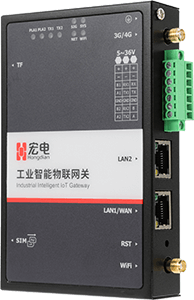

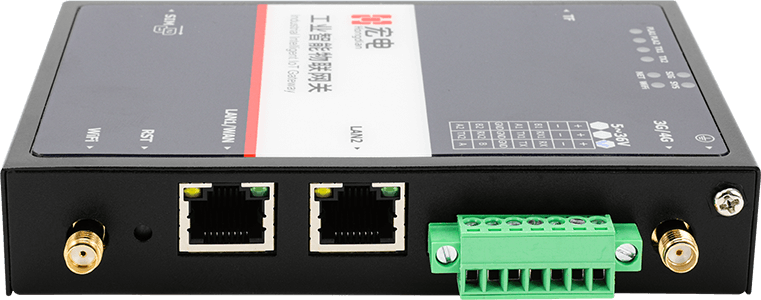

X1 4G Industrial Gateway
  • LTE Cat1/Cat4 with industrial CPU
  • Data acquisition and edge processing
  • Support various industrial protocols
  • Programable with C and python
Product Introduction
X1 4G Industrial Gateway is a 4G gateway with edge computing capability for IIoT. It adopts a fully industrial-grade hardware platform with powerful data collection, storage, analysis and processing capabilities. 4G wireless network and multiple bandwidth services provide stable and reliable internet access everywhere. With its excellent product quality and comprehensive security, it realizes equipment networking and provides solutions for true equipment informatization, manufacturing intelligence, edge computing and maintenance industrial internetization.
Hardware
CPU ARM Cortex-A7 @900MHz
RAM 512MB
FLASH 8GB eMMC
Cellular Interface
Modem 1 x LTE CAT1/CAT4
Number of Antennas 2
Connector SMA-K
SIM 2 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n, AP or station modes
Frequency Bands 2.4 GHz
Speed 150Mbps
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Antennas 1
Connector SMA-K
GNSS Interface
Number of Antennas N/A
Connector
Dead Reckoning
Peripheral Interface
Ethernet 1 × LAN 10/100Mbps + 1 × WAN/LAN 10/100Mbps, Ethernet
Serial Type 1 x RS-232 + 1 x RS-485 serial port
Socket Form 1 x 7-pin 3.5 mm female socket
Signal Definition RX,TX,GND (RS-232)
A+,B-,GND (RS-485)
Baudrate RS-232 (300-115200bps)
RS-485 (300-115200bps)
AVOUT N/A
GPIO N/A
SD card TF card slot
USB N/A
Video port N/A
Audio Port N/A
Software
Auto Fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network Protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform
Serial Ports Function Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector 2 pin socket
Voltage Input +5V~+36V DC
Power Consumption Idle:180mA@12V DC
Data transceiving: 300mA@12V DC
Others
Reset Button Yes
LED Indicators 4 x  indicators for SIG, SYS, NET, WiFi
4 x  indicators for PLA1, PLA2, TX1, TX2
Hardware Watchdog Yes
Physical Characteristics
Ingress Protection IP43
Housing & Weight Metal,285g
Dimension 127×83×24(mm)
Installations Desktop, wall mounting and  DIN rail mounting
Operating Temperature -30 ~ +70 °C
Storage Temperature -40 ~ +85 °C
Relative Humidity 5 ~ 95%
EMC
ESD EN61000-4-2, level3
RS EN 61000-4-3, level3
EFT EN 61000-4-4, level3
CS EN 61000-4-6, level3
File Name
Hongdian Datasheet-X1 4G Industrial Gateway-2024V1.0
Product Part No. Frequency Interface Region
4G modem WLAN RJ45 RS232 RS485

X1

4G Industrial Gateway

X1-L100-W-2R-CS 4G(LTE-FDD): B1/B3/B5/B7/B8/B20
4G(LTE-TDD): B38/B40/B41
3G: B1/B5/B8
2G: B3/B8 		1 1 2 1 1 Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
X1-L100-W-2R-2S 1 1 2 - 2 Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
X1-L108-W-2R-CS 4G(FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28
4G(LTE-TDD): B40
3G: B2/B3/B5/B8 		1 1 2 1 1 Oceania, South America
X1-L108-W-2R-2S 1 1 - 2

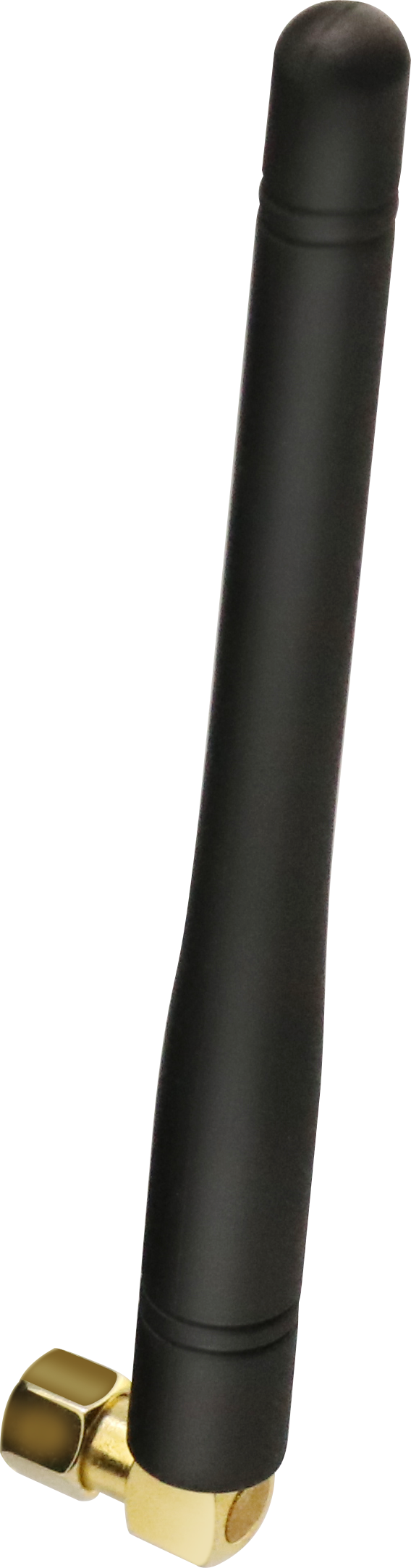

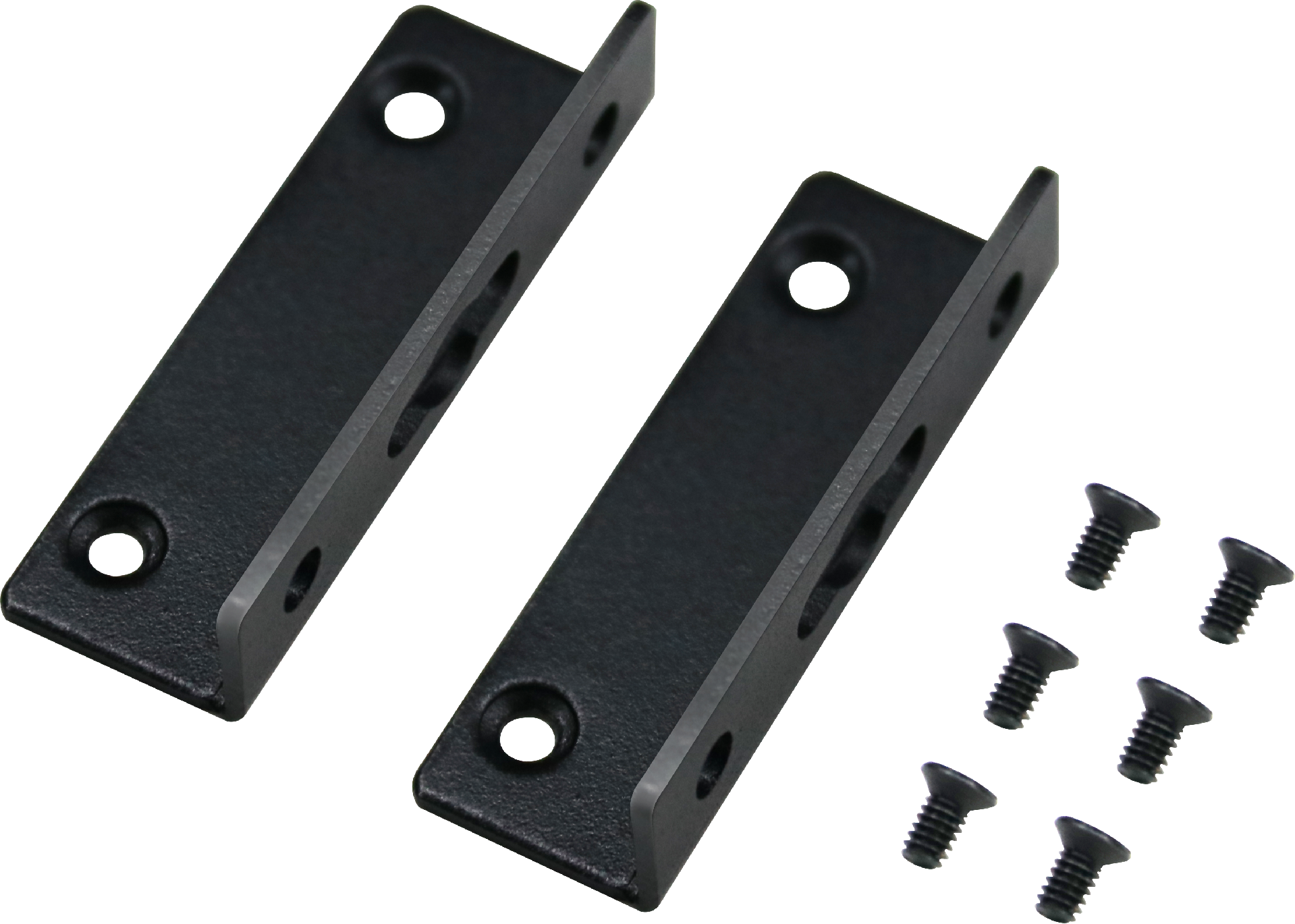

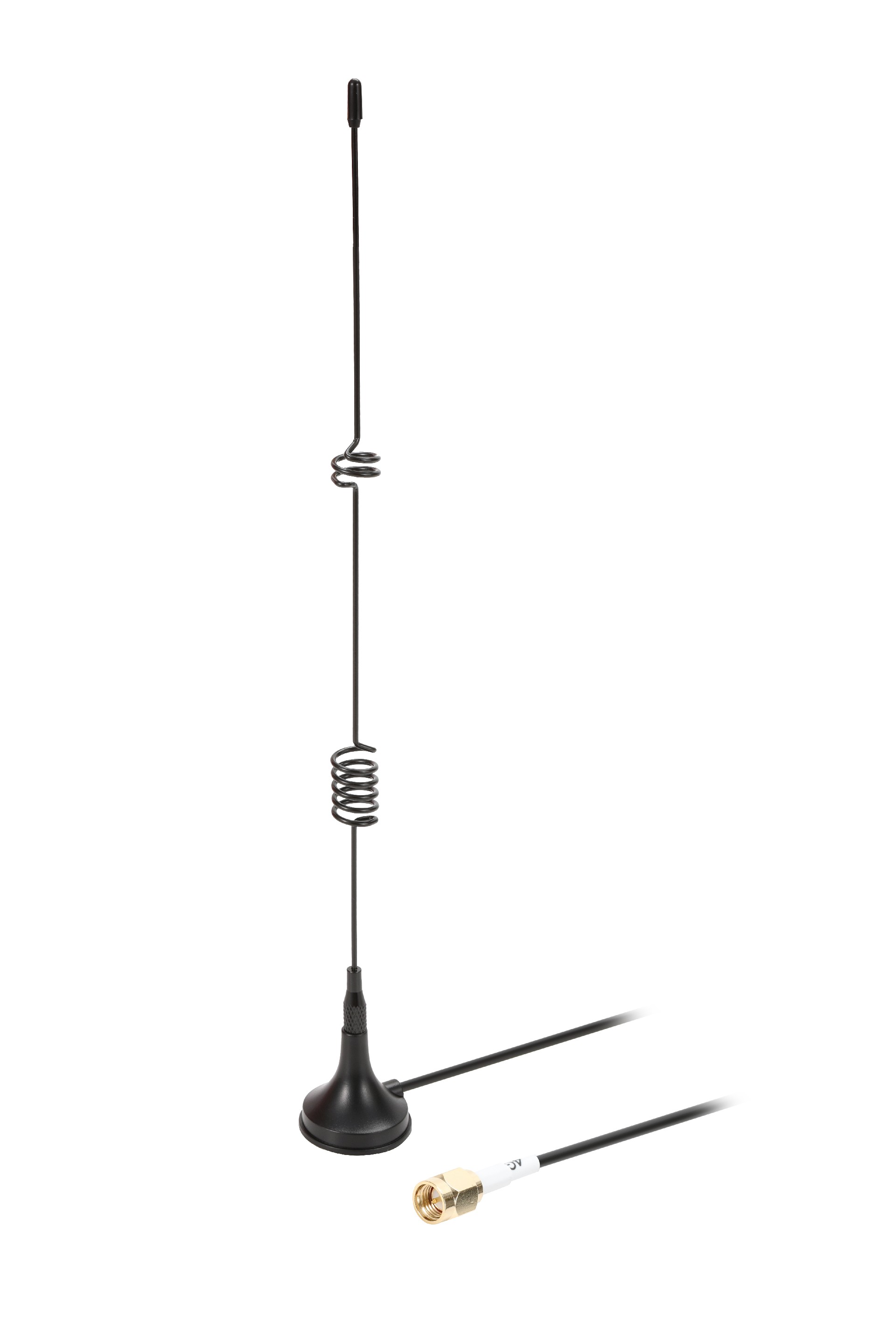

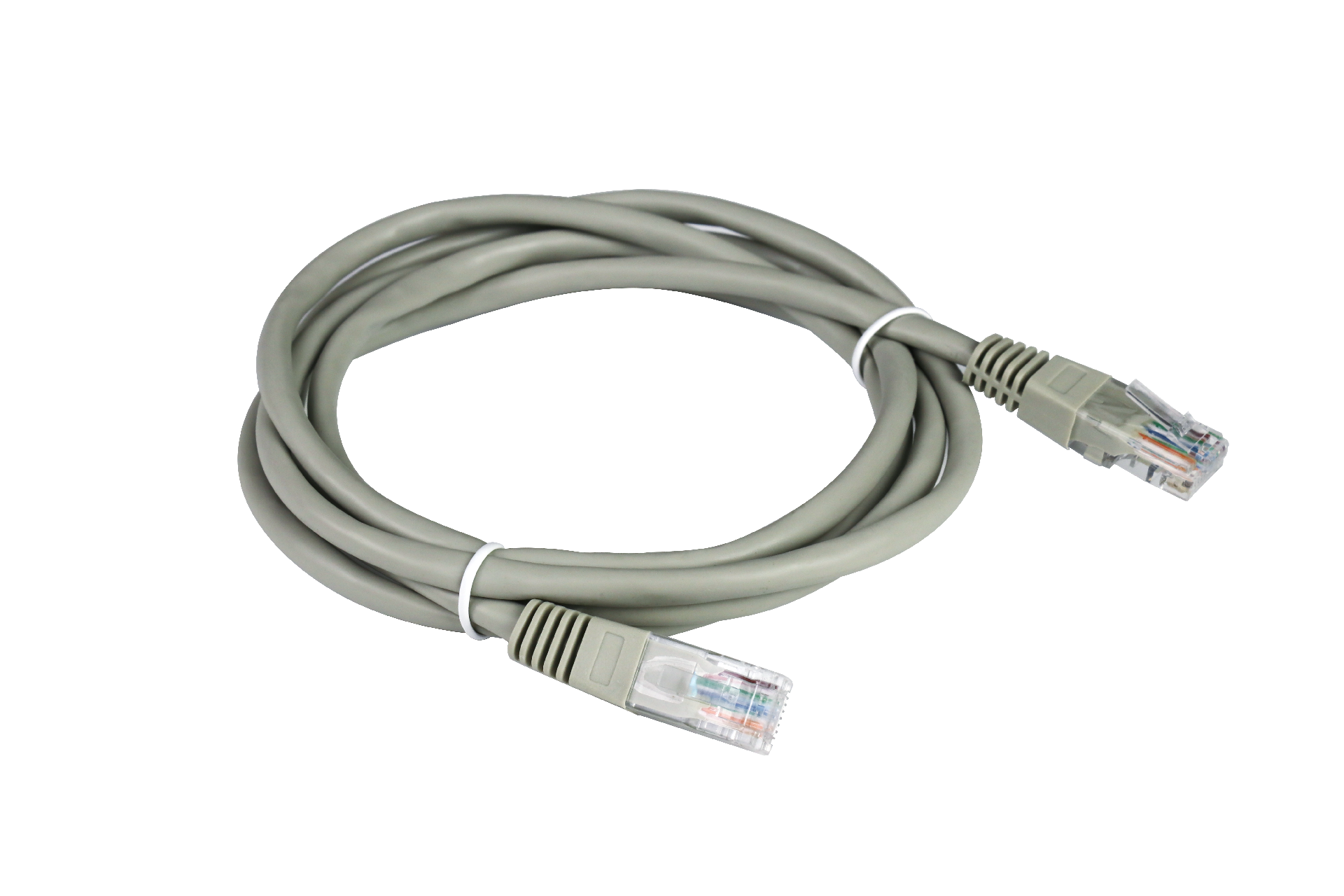

Compatible Accessories

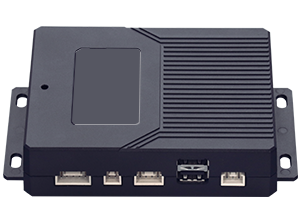

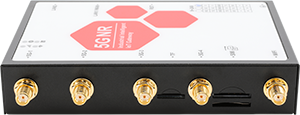

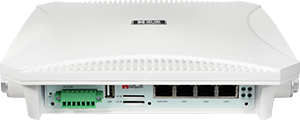

Related Products
